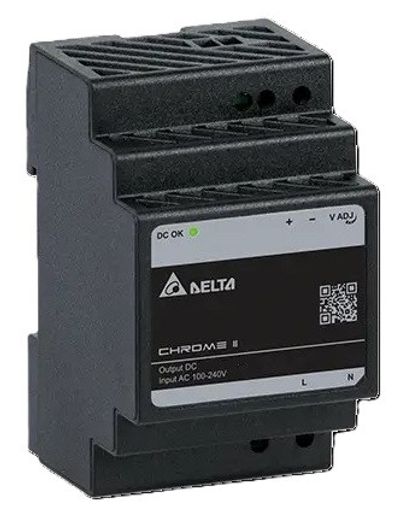

Delta CHROME II sarjan DRC-48V060W1RZ - Insulation class II DIN-rail power supply in plastic enclosure.

Technical specifications

• Input voltage range: 85–264 VAC (nominal 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1.1 A typ. @ 115 VAC 0.7 A typ. @ 230 VAC
• Efficiency: 90 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.15 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Rated output voltage: 48 VDC
• Factory set and tolerance: 48 VDC ±1 %
• Output voltage adjustment range: 43.2–55 VDC
• Output current: 1.25 A
• Maximum output power: 60 W
• Line regulation: ±0.5 %
• Load regulation: ±0.5 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range -30°C - +70°C
