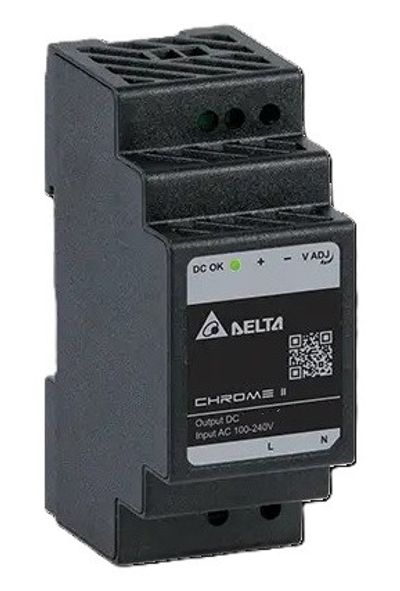

Delta CHROME II sarjan DRC-05V030W1RZ - Class II DIN-rail switching power supply in plastic enclosure.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.5 A typ. @ 115 VAC 0.3 A typ. @ 230 VAC
• Efficiency: 83.5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.1 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Rated output voltage: 5 VDC
• Factory setting and tolerance: 5VDC ±1 %
• Output voltage adjustment range: 4.5–5.5VDC
• Output current: 3 A
• Maximum output power: 15 W
• Line regulation: ±0.5 %
• Load regulation: ±1 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range -40°C to +70°C
