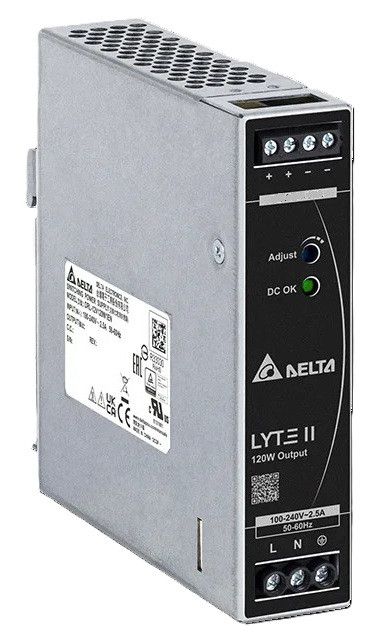

Delta DRL-12V120W1EN DIN-rail power supply with an adjustable 12 VDC 10A output.

Technical specifications

• Input voltage range: 90–264 VAC (nominal 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 2.1 A typ. @ 115 VAC, 1.3 A typ. @ 230 VAC
• Efficiency: 86% typ. @ 100% load, 230 VAC
• No-load power consumption: < 0.15 W @ 230 VAC
• Inrush current (cold start): 35 A typ. @ 230 VAC
• Leakage current: < 0.5 mA @ 240 VAC
• Rated output voltage: 12 VDC
• Factory setting and tolerance: 12VDC ±1%
• Output voltage adjustment range: 10.8–13.2 VDC
• Output current: 10 A
• Maximum output power: 120 W
• Line regulation: ±0.5%
• Load regulation: ±1%
• Enclosure material: Metal
• Connector type: Screw terminal
• Operating temperature range: -40°C - +70°C
