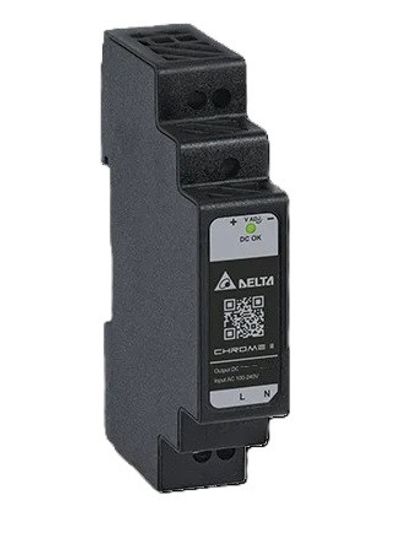

Delta CHROME II sarjan DRC-05V015W1RZ - Class II DIN-rail power supply with plastic enclosure.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.5 A typ. @ 115 VAC 0.3 A typ. @ 230 VAC
• Efficiency: 80.5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.1 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Nominal output voltage: 5 VDC
• Factory setting and tolerance: 5VDC ±2 %
• Output voltage adjustment range: 4.5–5.5VDC
• Output current: 2.4 A
• Maximum output power: 12 W
• Line regulation: ±0.5 %
• Load regulation: ±1 %
• Case material: Plastic
• Connector type: Screw terminal
• Operating temperature range: -30°C to +70°C
