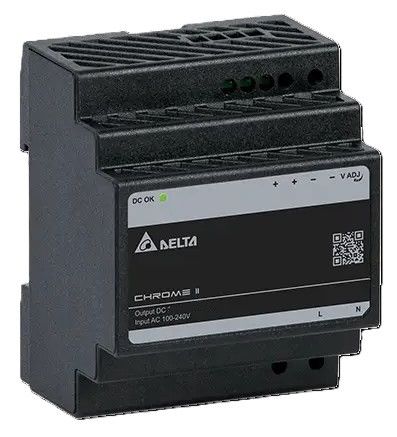

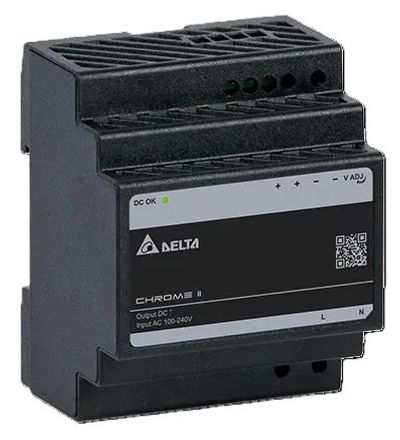

Delta CHROME II sarjan DRC-24V0100W1RZ - Insulation class II DIN-rail power supply with plastic enclosure.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1.8 A typ. @ 115 VAC 1.2 A typ. @ 230 VAC
• Efficiency: 89 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.15 W @ 230 VAC
• Inrush current (cold start): 70 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Nominal output voltage: 24 VDC
• Factory setting and tolerance: 24 VDC ±1 %
• Output voltage adjustment range: 21.6–26.4 VDC
• Output current: 3.83 A
• Maximum output power: 92 W
• Line regulation: ±0.5 %
• Load regulation: ±1 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range: -30°C to +70°C
