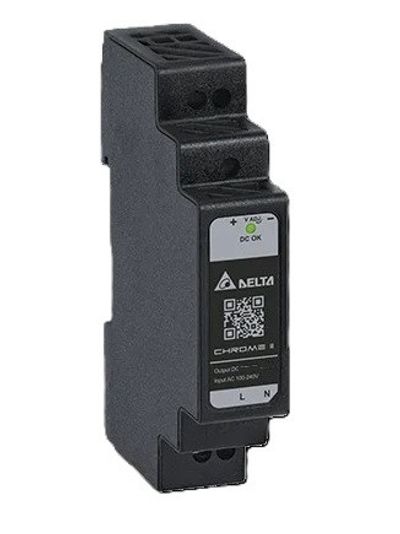

Delta CHROME II series DRC-12V015W1RZ - Insulation class II DIN-rail power supply in a plastic enclosure.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.5 A typ. @ 115 VAC 0.3 A typ. @ 230 VAC
• Efficiency: 86.5% typ. @ 100% load, 230 VAC
• No-load power consumption: < 0.1 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.25 mA @ 240 VAC
• Nominal output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±1%
• Output voltage adjustment range: 10.8–13.2 VDC
• Output current: 1.25 A
• Maximum output power: 15 W
• Line regulation: ±0.5%
• Load regulation: ±1%
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range -40°C - +70°C
