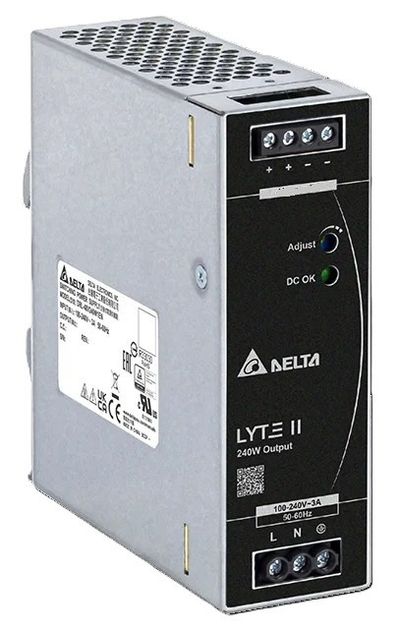

Delta DRL-48V240W1EN DIN-rail power supply with an adjustable 48VDC 5A output.

Technical specifications

• Input voltage range: 90–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 2.5 A typ. @ 115 VAC 1.3 A typ. @ 230 VAC
• Efficiency: 90.5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.3 W @ 230 VAC
• Inrush current (cold start): 40 A typ. @ 230 VAC
• Leakage current: < 0.75 mA @ 240 VAC
• Rated output voltage: 48 VDC
• Factory set and tolerance: 48 VDC ±1 %
• Output voltage adjustment range: 43.2–52.8 VDC
• Output current: 5 A
• Maximum output power: 240 W
• Line regulation: ±0.5 %
• Load regulation: ±0.5 %
• Enclosure material: Metal
• Connector type: Screw terminal
• Operating temperature range -40°C - +70°C
