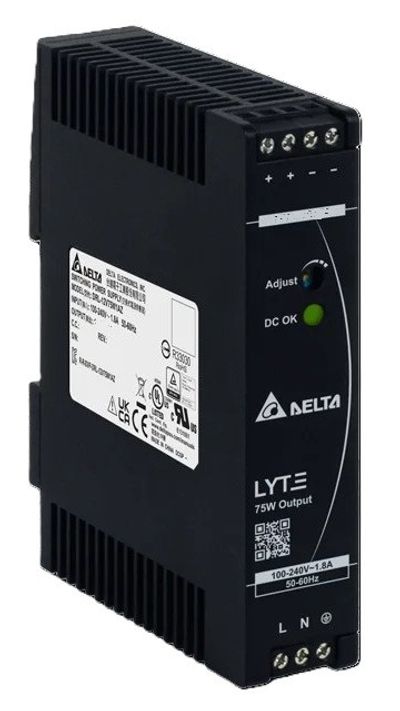

Delta DRL-12V75W1AZ DIN-rail power supply with adjustable 12VDC 6,25A output.

Technical specifications

• Input voltage range: 85–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1,4 A typ. @ 115 VAC 0,9 A typ. @ 230 VAC
• Efficiency: 87,5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0,3 W @ 230 VAC
• Inrush current (cold start): 50 A typ. @ 230 VAC
• Nominal output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±2 %
• Output voltage adjustment range: 10,8–13,2 VDC
• Output current: 6,25 A
• Maximum output power: 75 W
• Line regulation: ±0,5 %
• Load regulation: ±1 %
• Enclosure material: Plastic
• Connector type: Screw terminal
• Operating temperature range -10°C - +50°C
