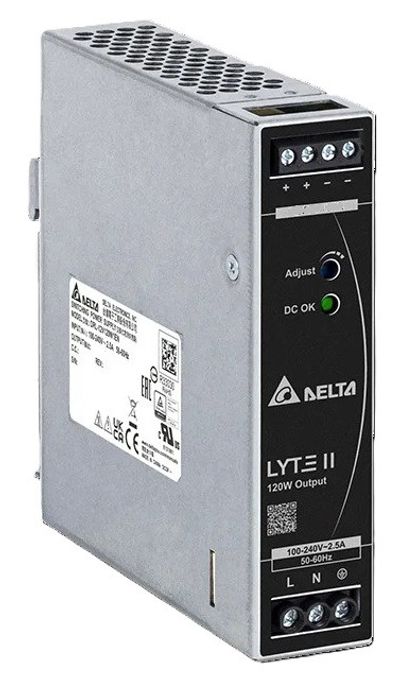

Delta DRL-48V120W1EN DIN-rail power supply with an adjustable 48VDC 2.5A output.

Technical specifications

• Input voltage range: 90–264 VAC (rated voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 2.1 A typ. @ 115 VAC 1.3 A typ. @ 230 VAC
• Efficiency: 88 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.21 W @ 230 VAC
• Inrush current (cold start): 35 A typ. @ 230 VAC
• Leakage current: < 0.5 mA @ 240 VAC
• Rated output voltage: 48 VDC
• Factory setting and tolerance: 48 VDC ±1 %
• Output voltage adjustment range: 43.2–52.8 VDC
• Output current: 2.5 A
• Maximum output power: 120 W
• Line regulation: ±0.5 %
• Load regulation: ±0.5 %
• Enclosure material: Metal
• Connector type: Screw terminal
• Operating temperature range -40°C - +70°C
