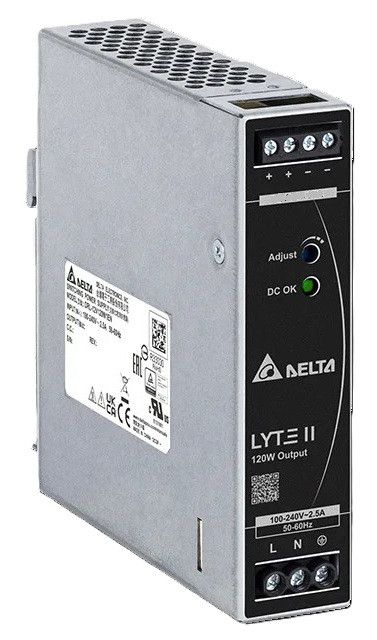

Delta DRL-24V120W1EN DIN-rail power supply with adjustable 24 VDC 5A output.

Technical specifications

• Input voltage range:90–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 2,1 A typ. @ 115 VAC 1,3 A typ. @ 230 VAC
• Efficiency: 88,5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0,15 W @ 230 VAC
• Inrush current (cold start):35 A typ. @ 230 VAC
• Leakage current: < 0,5 mA @ 240 VAC
• Rated output voltage: 24 VDC
• Factory setting and tolerance: 24VDC ±1 %
• Output voltage adjustment range: 21,6–26,4 VDC
• Output current: 5 A
• Maximum output power: 120 W
• Line regulation: ±0,5 %
• Load regulation: ±0,5 %
• Enclosure material: Metal
• Connector type: Screw terminal
• Operating temperature range -40°C - +70°C
