Digitally implemented timer relay. The time range is from seconds to 34 minutes or from minutes to 34 hours. Press the Start button, the relay energizes and the time begins to run. The relay stops energizing when the time runs out or you press the Stop button.
Features
- One relay output

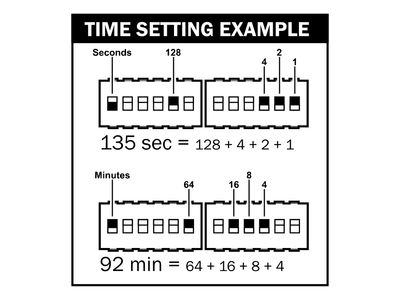

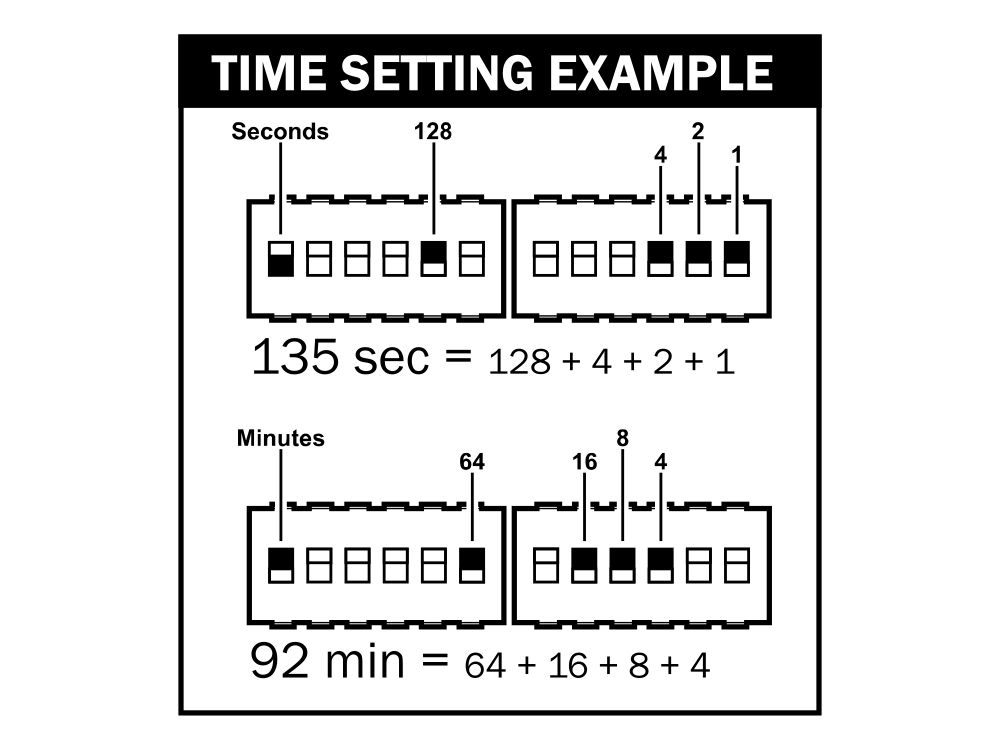

- Time setting with DIP switches using binary coding principle
- Auto-start when power is applied
- External control possible with a switch or control voltage (3-24V)
- Indicator LEDs show status; whether power is on and whether the relay is energized

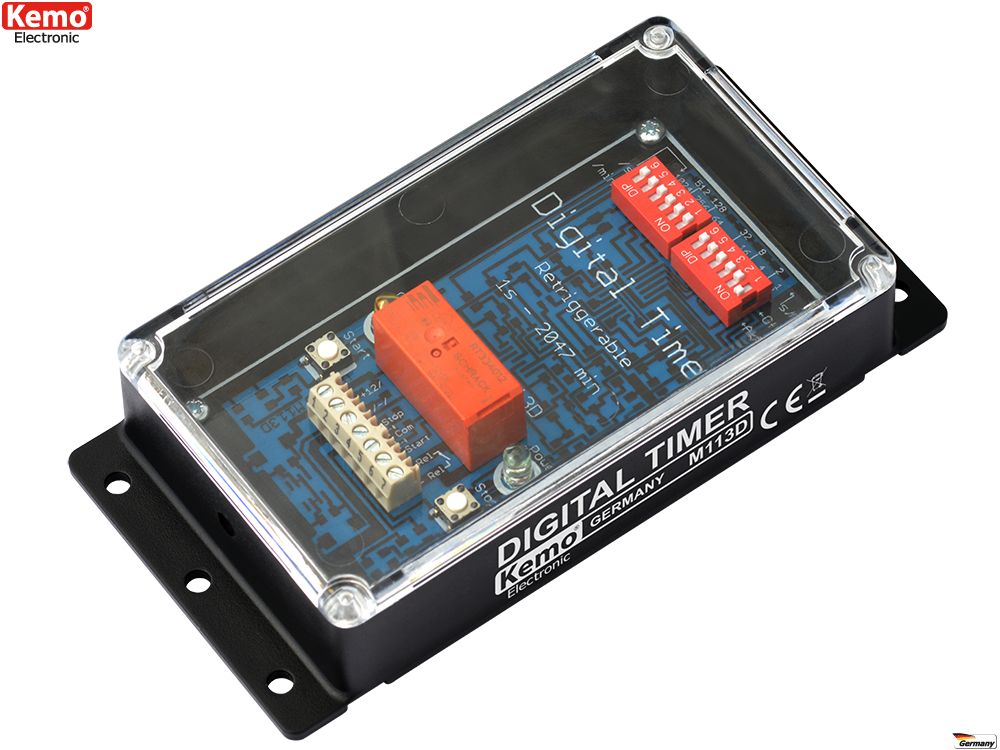

- Transparent, wall-mountable enclosure
- Wiring connections with screw terminal block
Technical specifications
|
Supply voltage
|
12 V/DC ± 5%
|
|
Current consumption
|
off: < 6 mA, on: < 50 mA
|
|
Switch contacts
|
1 x ON, max. 24 V max. 10 A AC or DC
|
|
Connections
|
screw terminal block: start and stop buttons, relay contacts, 12V supply voltage
|
|
Display
|
1 LED each for “operation” and “switching on”
|
|
Adjustable timers
|
1 - 2047 seconds in one-second steps or 1 - 2047 minutes in one-minute steps
|
|
Set time accuracy
|
approx. ± 10%
|
|
When the time counting is running and the relay is energized, it can always be interrupted by pressing the Off button.
|
|
Automatic timer start
|
Connect a 22μF >50V electrolytic capacitor to the Start button connection and the timer will start automatically when power is applied (see datasheet)
|
|
Dimensions
|
approx. 120 x 70 x 30 mm (without mounting ears)
|
Note! Necessary openings for cables must be made in the enclosure yourself.
Note! Do not use for controlling devices with 230VAC mains voltage.
