• with metal gears and sliding bearings
• operating speeds:
  • 0,10s / 60 degrees (no load @4,8V)
  • 0,08s / 60 degrees (no load @6V)
• operating voltage: 4,8-6VDC
• rotation angle: 180° (90° in each direction)
• torque: 1,8kg/cm (4,8V), 2,2kg/cm (6V)

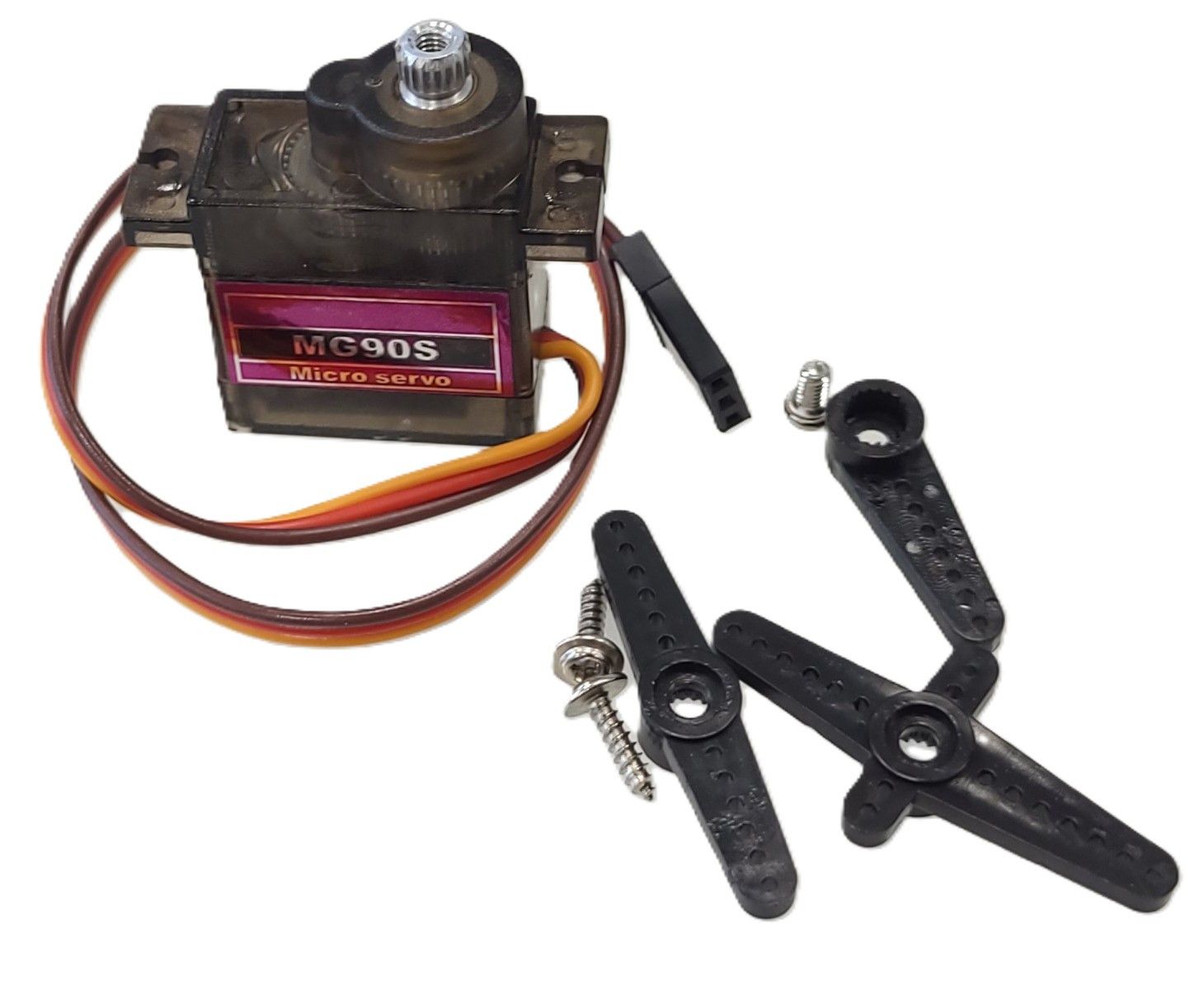

• includes three different adapter pieces
• three-pin JR connector, cable length 25cm
• wiring:
  • 1. brown = GND
  • 2. red = VCC
  • 3. orange = servo control signal (PWM)

Control tip: center at 1,5ms pulse width, 90 degrees left approx. 2ms pulse width and 90 degrees right approx. 1ms pulse width. PWM frequency can be e.g. 50Hz (20ms).
