PRODUCT DETAILS

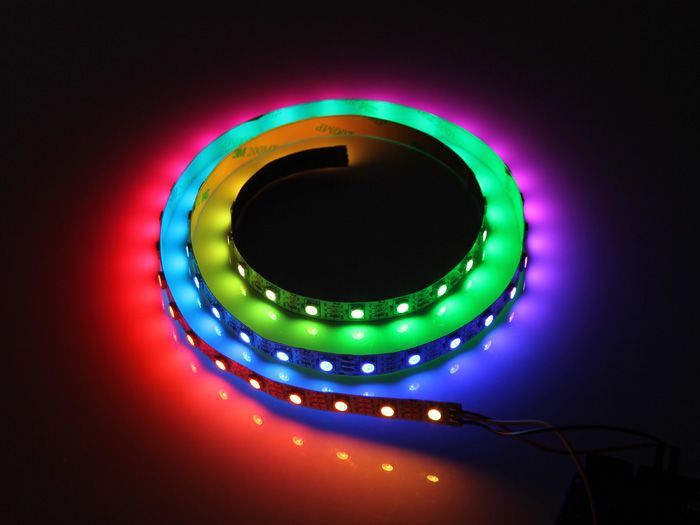

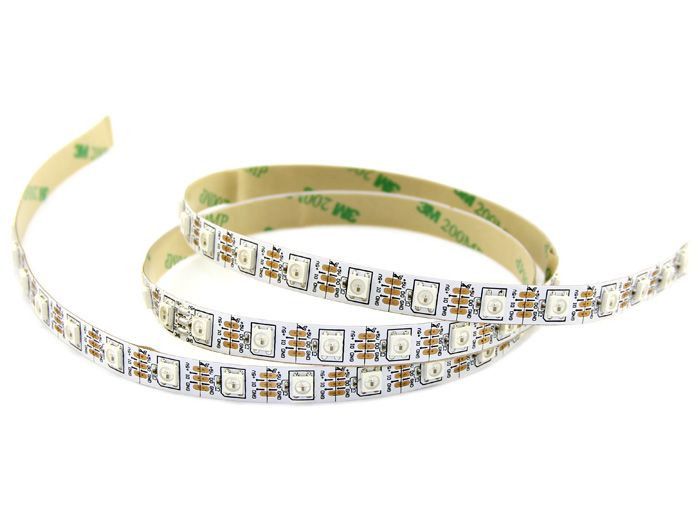

Digital RGB LED Flexi-Strip is an intelligent light source consists of WS2812B RGB LED with Integrated Driver Chip. The control circuit and RGB chip are integrated in a package of 5050 components.

This LED flexible strip is a full-color strip with external control for each lamp bead. With high brightness, it can achieve effects of full color running water, chasing and scanning.

The RGB LED chips have low driving voltage, environmental protection and energy saving, high brightness, large scattering angle, good consistency, low power, long life and other advantages. The control chip integrated in the LED makes the circuit simpler, with small volume and convenient installation.

Features

• Integrating control circuit and RGB chip

• Built-in signal reshaping circuit

• Built-in electric reset circuit and power-loss reset circuit

• 256 brightness levels and 16,777,216 color display

• Cascading port transmission signal

Specifications

• Working voltage: DC 5V

• Max. power rate: 0.3W/LED

• Working temperature: -40℃～60℃

• LED number: 60pcs/meter

• Viewing angle: ≥140°

• Lifespan: MTBF ≥ 50000h

Documents

• WS2812B Datasheet

• Simple Circuit

• Example Code

• Diagram for Flex-strip’s product size
