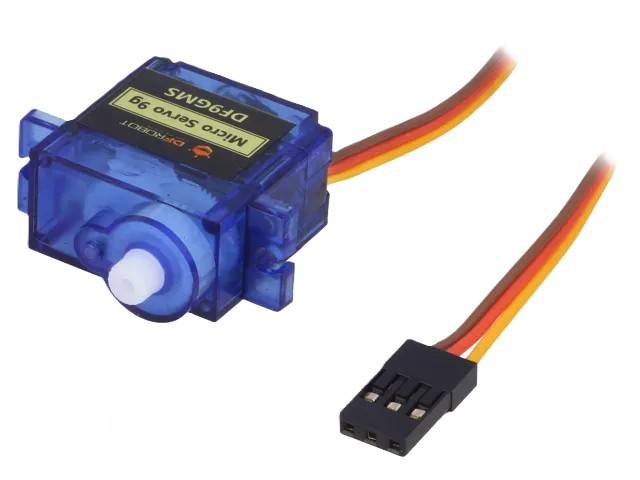

DFRobot SER0006 9g Micro Servo (1.6kg·cm, 180°)

Compact 9 g analog micro servo motor for small robotics and automation projects. Suitable for Arduino, micro:bit and other controller platforms. Offers a 180° rotation angle and sufficient torque for lightweight mechanical solutions.

Technical specifications

• Operating voltage: 4.8 – 6 VDC
• Rotation angle: 180° (±5°)
• Torque: max. 1.6 kg·cm @ 4.8 V
• Speed: 0.12 s / 60° @ 4.8 V
• Current consumption: < 500 mA
• Control: PWM (servo signal)
• Signal range: 500–2500 µs
• Neutral position: 1500 µs
• Cable length: ~180 mm
• Dimensions: approximately 22 × 12.5 × 29.5 mm
• Weight: ~9 g
• Operating temperature: -30 … +60 °C

Features

• Small size and lightweight construction
• Sufficient torque for light mechanical loads
• Compatible with common servo controllers
• JR-type connector

Applications

• Small robots and vehicles
• Insect / BEAM-type robots
• Educational projects and prototypes
• Servo-driven mechanisms (switches, flaps, actuators)

Package includes

• 1 × DFRobot SER0006 9g micro servo
