Description

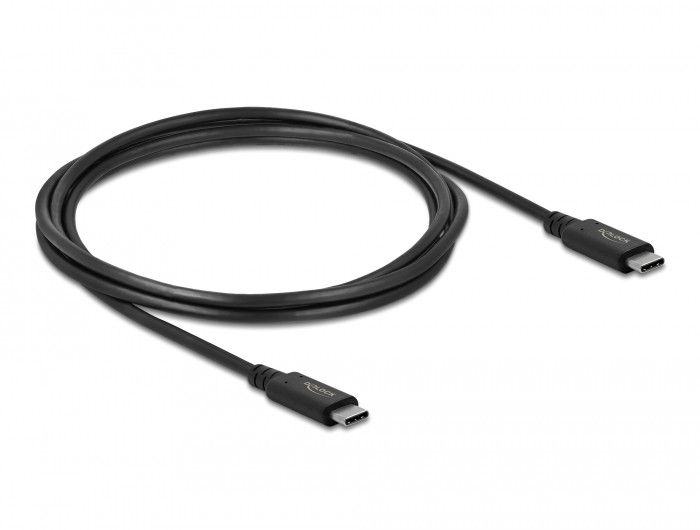

This Delock USB4™ cable enables connecting various devices such as smartphones, monitors, external enclosures and docking stations to a PC or laptop via a USB Type-C™ or Thunderbolt™ 3 port. The cable supports USB as well as DisplayPort and PCI Express data transmission.

USB4™ 20 Gbps
The cable allows up to 20 Gbps data transfer speed when connecting USB4™-compatible devices. Of course, USB 3.2 or USB 2.0 devices can also be connected.

Connecting DisplayPort monitors
The Delock cable supports DisplayPort 1.4a and DisplayPort 2.0 Alternate Mode, enabling connection of DisplayPort monitors with resolutions up to 4K 60 Hz.

USB Power Delivery (USB PD 3.0) support up to 100 watts.
Supports the USB Power Delivery 3.0 standard, allowing power delivery to connected devices up to 100 W (20 V / 5 A).

Technical specifications

• 1 x USB4™ 20 Gbps (Gen 2x2) USB Type-C™ male >
• 1 x USB4™ 20 Gbps (Gen 2x2) USB Type-C™ male (male).
• USB-IF certified cable
• Backward compatible with USB 3.2, USB 2.0 and Thunderbolt™ 3.
• Controller: Cypress E-Marker
• 30 + 31 AWG data wire
• 21 + 32 AWG power wire
• Contacts gold-plated
• Cable diameter: approx. 5 mm
• Data transfer speed up to 20 Gbps
• Display resolution up to 3840 x 2160 @ 60 Hz (depending on system and connected hardware)
• Supports HDR10
• Supports HDCP 1.4 and 2.3.
• Supports PCI Express 3.0 protocol (4 lanes)
• Supports DisplayPort 1.4a protocol
• Supports DisplayPort Alt Mode 2.0
• Dual-channel, bidirectional
