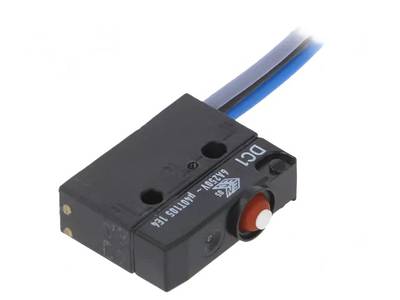

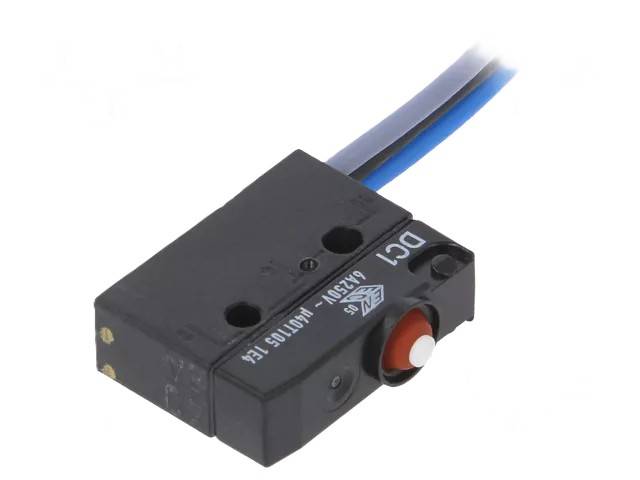

ZF DC1C-C3AA mikrokytkin 6 A / 250 VAC, IP67

ZF DC1C-C3AA is a compact and sealed snap-action micro switch for industrial, automation and equipment applications. The switch features a push-button actuator, an SPDT changeover contact and fixed 500 mm lead wires. IP67 protection allows use also in demanding environmental conditions.

Technical specifications

• Manufacturer: ZF
• Product code: DC1C-C3AA
• Type: Snap-action micro switch
• Contact configuration: SPDT, 1 changeover contact
• Rated current: 6 A
• Rated voltage: 250 VAC
• Actuator: push-button / plunger
• Operating force: approx. 2 N
• Connection: fixed 500 mm wires
• Protection class: IP67
• Operating temperature: -40...+105 °C
• Mechanical lifetime: 1 000 000 operations
• Dimensions: 20 x 6,5 x 15,2 mm
• Approvals: UL, ENEC
• RoHS compliant

Applications

• Limit and position detection
• Industrial automation
• Machinery and equipment
• Control and safety functions
• Applications requiring protection against moisture and dust

DC1C-C3AA is particularly suitable for applications requiring a small, reliable and sealed micro switch with pre-fitted lead wires.
