DC VOLTAGE CONVERTER 24Vin/12Vout 3A
In stock 11 pcs
SKU#: KEMO-M038N
DC VOLTAGE CONVERTER 24Vin/12Vout 3A
In stock 11 pcs
SKU#: KEMO-M038N

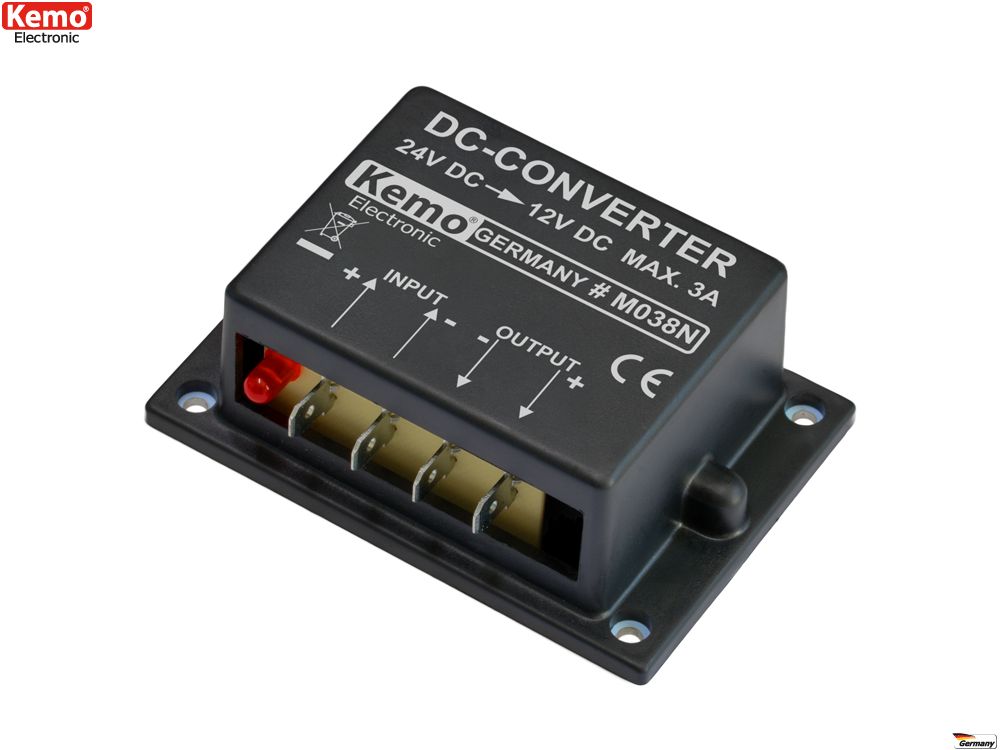

Kemo M038N - a voltage reducer that drops 24V truck or boat electrical systems to suit 12V devices.
25,60 €
In stock
Product Description
Features
- DC voltage reducer 24 VDC => 12 VDC (13.8 VDC), max. 3 A
- Allows the use of 12 VDC devices on 24 VDC power, e.g. trucks, boats, forklifts.
- Status LED indicates when the supply voltage is connected.
- Short-circuit protected.
- Durable enclosure.
- Connects between the battery and the devices to be powered.
- Connections with 6,3mm blade terminals.
Technical specifications
|
Input voltage |
24 - 28 VDC |
|
Output voltage |
approx. 13.8 VDC (equivalent to the voltage of a fully charged 12 V/DC battery) |
|
Max. current capacity |
3 A |
|
Dimensions |
approx. 87 x 60 x 33 mm (including bottom mounting brackets) |
Installation instructions
Always use a fuse between the battery and the Kemo M038N, do not connect directly to the battery terminals.
If the product becomes hot during use, provide adequate cooling. Heat is dissipated through the aluminum surface on the rear of the unit. Mount it against a heatsink or other metal surface. Use thermal paste to maximize heat transfer. Be careful when fastening so the unit is not twisted in any way. Use four M3 metal screws. Do not drill larger mounting holes or make other modifications. Ensure adequate cooling.
Product Information
- Availability In stock
- Manufacturer Kemo Electronic
- EAN 4024028030388
- Product path Home Do It YourselfBuilding KitsKemo ready-made modules DC VOLTAGE CONVERTER 24Vin/12Vout 3A
- SKU KEMO-M038N
- Attributes
- Manufacturer's model M038N
- Click for more details https://www.kemo-electronic.de/en/Car/Modules/M038N-DC-Converter.php
- Dimensions 87 x 60 x 33 mm
