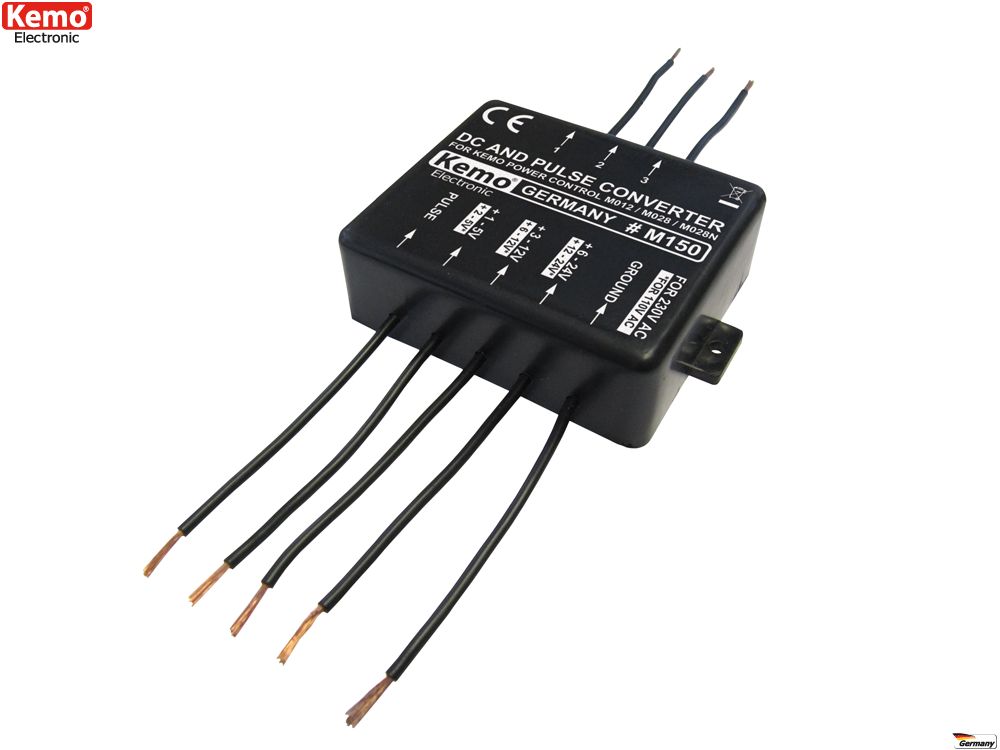

DC/PWM CONTROL MODULE

Name: DC/PWM CONTROL MODULE
Brand: Kemo Electronic
SKU: KEMO-M150
Price: 26.79 EUR
Availability: InStock

Temporarily out of stock

SKU#: KEMO-M150

Temporarily out of stock

SKU#: KEMO-M150

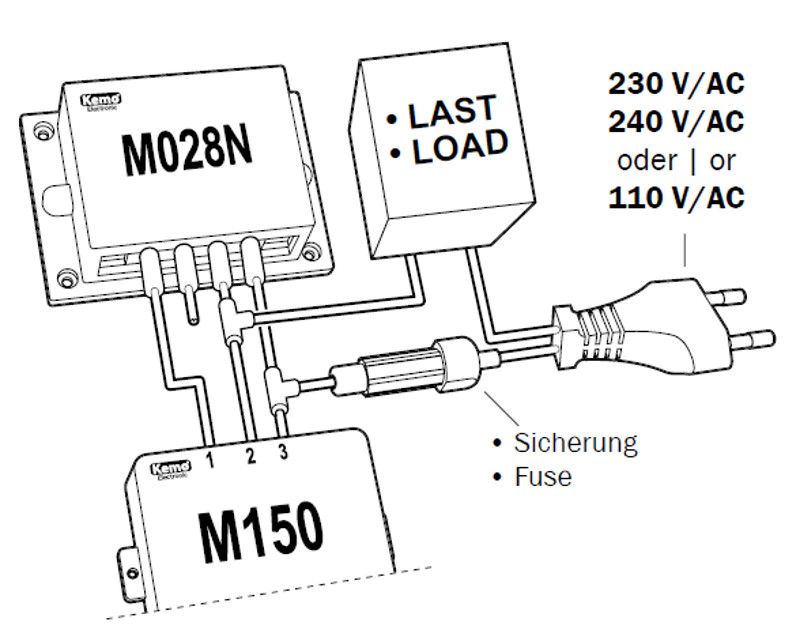

Kemo M150 - with this module you can control, for example, the KEMO M028N power module using DC voltage or a PWM signal. Includes opto-isolation.

26,79 €

Made to order, delivery time usually 7-14 days

Add a comment about the product

Product Description

With voltage-level control (when the load is 230 V/AC) the suitable control voltages are 1 - 5 V/DC, 3 - 12 V/DC, 6 - 24 V/DC

With TTL-level PWM control 5 V/DC, 1 - 10 kHz pulse width 10 - 90%.

The Kemo M150 controller is suitable for the following power modules:

Operating voltage	110 V/AC or 230 V/AC
Output	Provides the appropriate control for dimmer modules M012, M028 and M028N for potentiometer control.
Input	Control voltages 1 - 5 V/DC or 3 - 12 V/DC or 6 - 24 V/DC or TTL PWM
Frequency	approx. 1 - 10 kHz
TTL control	approx. 5 V/DC, 10 - 90% PWM
Input resistances	1 - 5 V/DC >1.4 kohm / 3 - 12 V/DC >4.1 kohm / 6 - 24 V/DC >9.1 kohm
TTL control input resistance	>1.1 kohm
Galvanic isolation	opto-isolation between the control input and the signal output to the power module

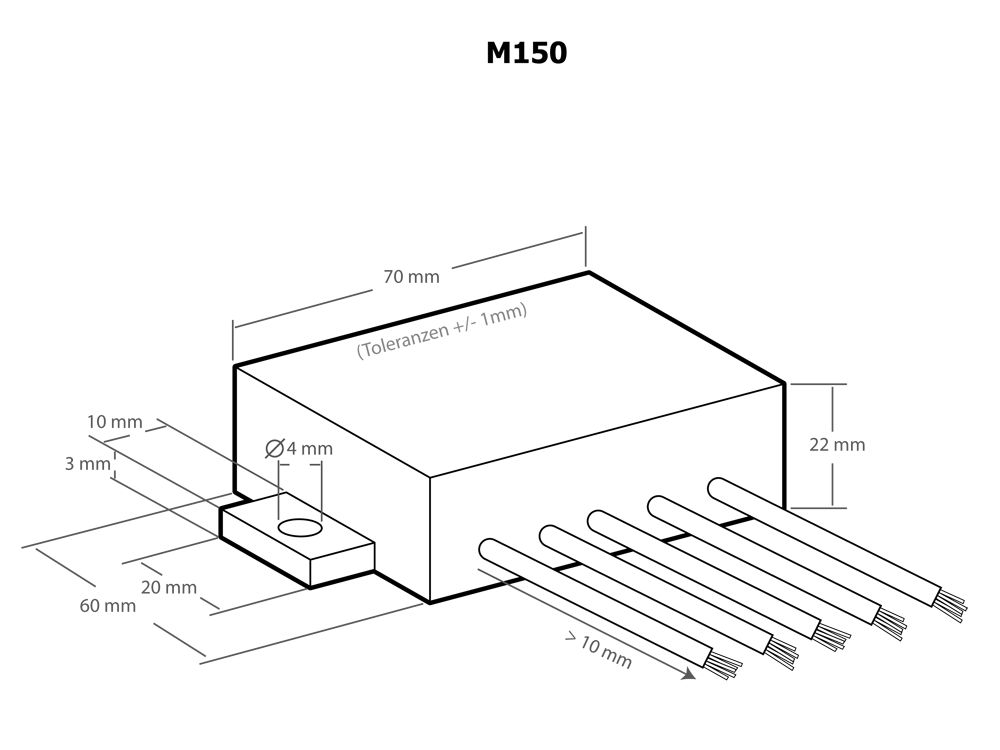

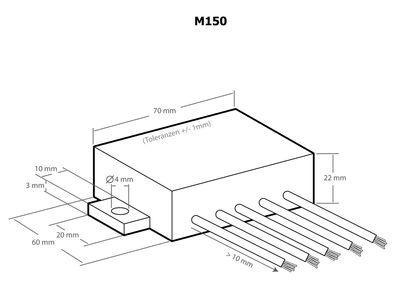

Dimensions	approx. 70 x 60 x 23 mm (without mounting ears)

Note! Always remember to use the fuse required by the wiring. Leave installation work to professionals.

Availability Made to order, delivery time usually 7-14 days
Manufacturer Kemo Electronic
EAN 4024028031507
Product path Home Do It Yourself Building Kits Kemo ready-made modules DC/PWM CONTROL MODULE
SKU KEMO-M150
Attributes
- Manufacturer's model M150
- Click for more details https://www.kemo-electronic.de/en/Transformer-Dimmer/Converter/M150-DC-pulse-converter.php
- Dimensions 70 x 60 x 23 mm
- Delivery time 6-12 weeks
