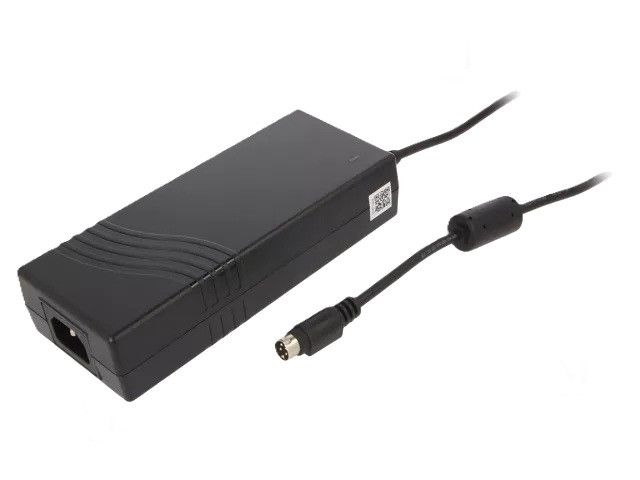

DC POWER SUPPLY 12VDC 10A MiniDIN 4

In stock 2 pcs

SKU#: VES120PS12

DC POWER SUPPLY 12VDC 10A MiniDIN 4

DC POWER SUPPLY 12VDC 10A MiniDIN 4

DC POWER SUPPLY 12VDC 10A MiniDIN 4

In stock 2 pcs

SKU#: VES120PS12

109,50 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Output voltage: 12 VDC
Output current: Maximum 10 A
Power: 120 W
Input voltage range: 90–264 VAC
Input connector: IEC 320-C14

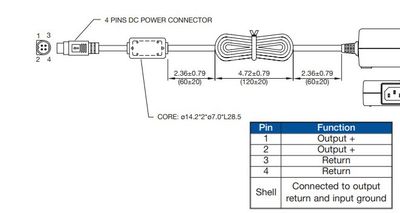

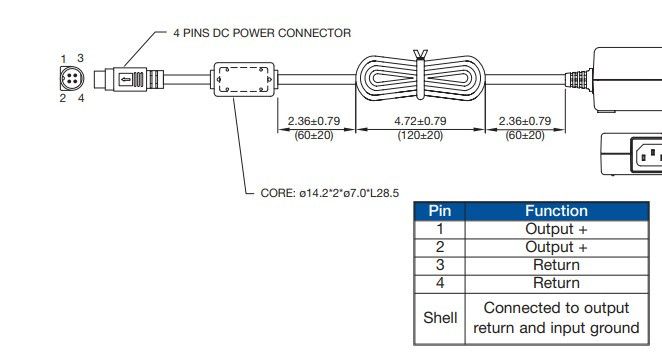

Output connector: 4-pin Power DIN (compatible with Kycon KPJ-4S or equivalent)
Efficiency level: VI (meets CoC Tier 2 requirements)
No-load power: < 0,15 W
Operating temperature: 0 °C – +60 °C (power derating above 40 °C)
Safety standards: UL62368-1, EN62368-1, IEC62368-1
EMC compliance: EN55032 (Class B), EN61000-3-2 (Class A), EN61000-4-series immunity standards
Dimensions: 168 × 71 × 37,5 mm
Weight: 589g

Product Information

Availability In stock
Product path Home Power Supplies Chopper Power Supplies Plug Power Supplies DC POWER SUPPLY 12VDC 10A MiniDIN 4
SKU VES120PS12
Attributes
- Operating temperature 0...+60°C
- Connector-A MiniDIN-4
- Voltage class 12V
- Power Class 10A
- Power class 120W
