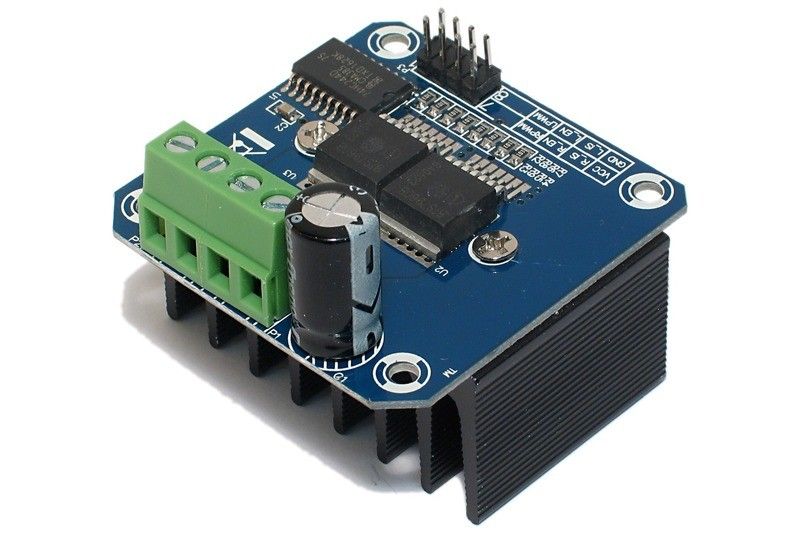

• the board consists of two BTS7960B motor driver chips
• suitable for driving a single DC motor
• the circuit supports "free wheeling" mode
• operating voltage of the circuit: 5VDC
• motor drive: 24VDC 43A
• PWM control: max. 25kHz
• overheat protection
• shutdown on undervoltage (5.4V)
• current limiting

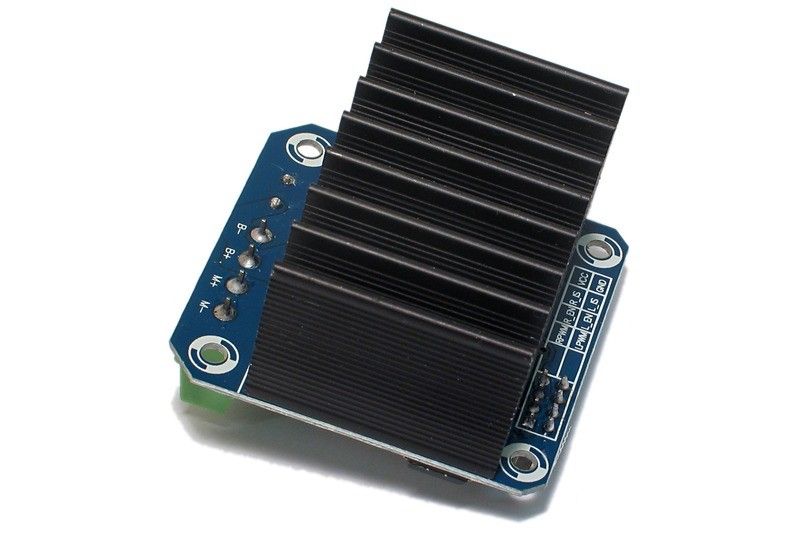

• heatsink: 51 x 32 x 23 mm
• motor and motor power connections with screw terminals
• control connector 2x4 pin header: VCC, GND, R_IS, L_IS, R_EN, L_EN, R_PWM, L_PWM
• the pin header at the corner of the board may bend during shipping, but can be straightened

Link tip:

Instructables: Motor Driver BTS7960 43A
