Danfoss AM024C solenoid coil (042N0842) 24VAC

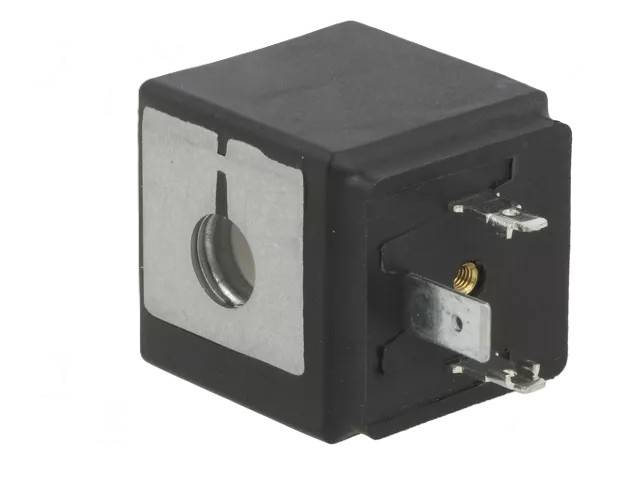

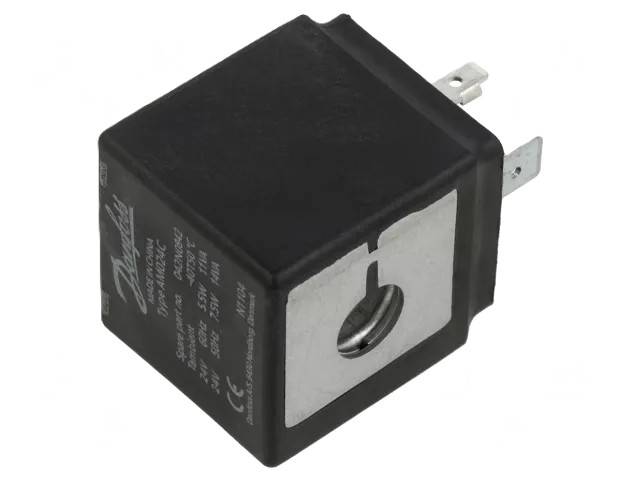

The Danfoss AM024C is a compact and reliable solenoid coil for industrial valves. It is designed for use with Danfoss EV210, EV220 and EV310 series solenoid valves. The coil has a 24 VAC operating voltage and a DIN connector, which allows for quick and easy installation.

Technical specifications

• Manufacturer: Danfoss
• Model: AM024C
• Product code: 042N0842
• Operating voltage: 24 V AC
• Frequency: 50/60 Hz
• Power consumption: 7.5 W (50 Hz), 5.5 W (60 Hz)
• Connection: DIN spade (3 x 6.3 mm)
• Protection class: IP00
• Insulation class: Class H
• Operating temperature: -40…+50 °C
• Coil size (actuator): 9 mm
• Mode of operation: continuous duty

Features

• Compact design for industrial use
• Quick installation with DIN connectors
• Suitable for multiple Danfoss solenoid valve models
• Reliable operation across a wide temperature range
• Compatible with EV210A, EV220A and EV310A series

Applications

• HVAC and refrigeration systems
• Industrial liquid and gas control
• Automation systems
• Solenoid valve controls

The AM024C coil is a standard solution for 24VAC solenoid valves requiring reliable and long-lasting performance in continuous operation.
