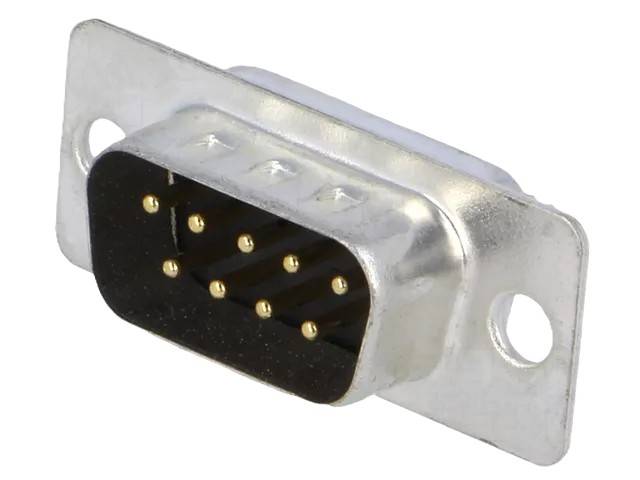

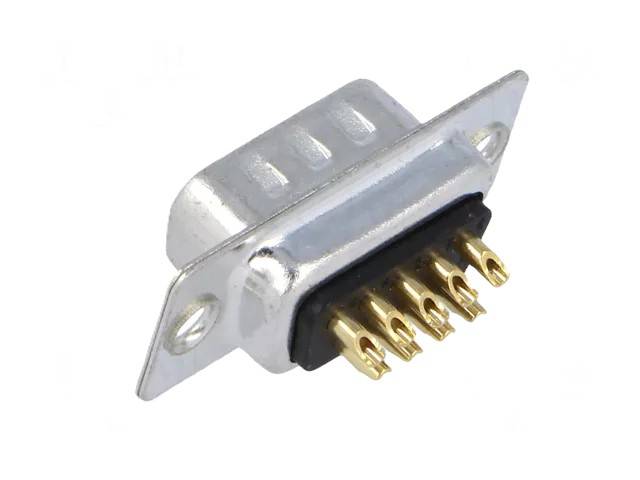

MHDM9SP D-Sub 9 - male connector, solder cup contacts

MHDM9SP is a 9-pin D-Sub DE-9 male connector for cable assemblies manufactured by MH Connectors. The connector features machined, gold-plated contacts and solder cup terminations suitable for reliable data transmission, control and industrial applications.

Features

• 9-pin D-Sub DE-9 male connector
• Machined gold-plated contacts
• Solder cup termination
• Straight cable mounting
• Steel shell with tin/nickel plating
• Glass-fiber reinforced PBT insulator
• Rated current 5 A / contact
• Operating temperature -55...+105 °C
• RoHS compliant

Technical specifications

• Manufacturer: MH Connectors
• Manufacturer part number: MHDM9SP
• Connector type: D-Sub
• Number of pins: 9
• Gender: Male (Plug)
• Contact type: Machined contacts
• Contact plating: Gold
• Termination: Solderable (Solder Cup)
• Mounting: Cable
• Number of rows: 2
• Current rating: 5 A

Applications

Especially suitable for RS-232, serial communication, automation, measurement and industrial electronics applications where a reliable 9-pin D-Sub cable connection is required.
