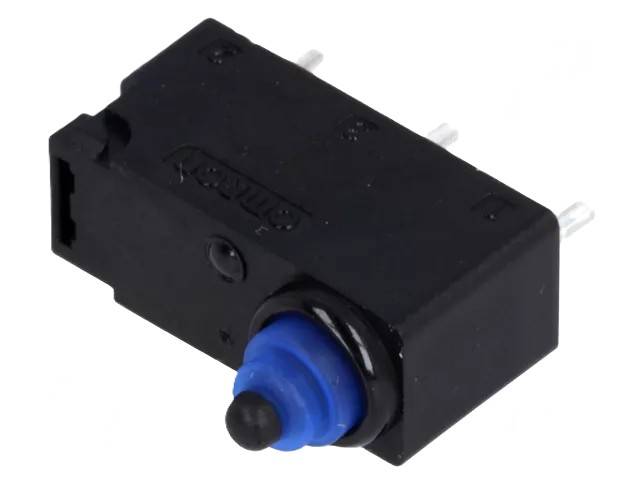

D2HW-A201D micro switch, IP67

Omron D2HW-A201D is a very compact, sealed IP67-class snap-action micro switch for demanding environments. The switch is suitable for industrial equipment, automation, vehicles and outdoor use where a dust- and splash-protected detection switch is required.

Features

• SPDT changeover contact (1 x changeover)
• Round pin plunger (Pin Plunger)
• IP67 protection rating
• PCB-mount, solderable pins
• Mechanical lifespan up to 1,000,000 operations
• Operating temperature -40…+85 °C
• Compact and sealed construction
• RoHS compliant

Technical specifications

• Manufacturer: Omron
• Series: D2HW
• Contact type: SPDT
• Operation: ON-(OFF) / OFF-(ON)
• Rated current: 100 mA AC, 2 A DC
• AC voltage: 125 VAC
• DC voltage: 12 VDC
• Operating force: 0.75 N (76 gf)
• Mounting: PCB / through-hole solderable
• Protection class: IP67
• Contact surface material: Gold (Gold plated contacts)

The D2HW-A201D belongs to Omron's series of very compact sealed micro switches, where a long operating travel improves reliable switching even in challenging conditions.
