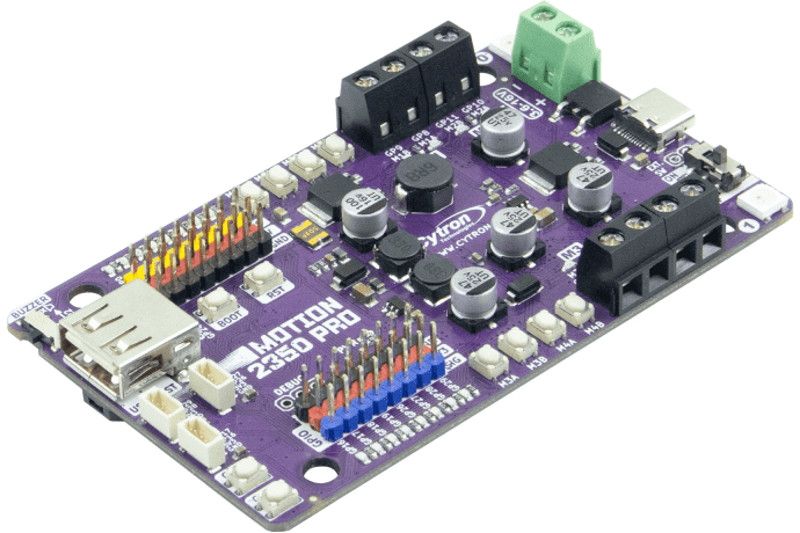

Cytron MOTION 2350 Pro is an advanced robotics controller designed to simplify your robotics projects. It runs on the Raspberry Pi RP2350 dual-core processor and supports up to 4 brushed DC motors and 8 servo ports, making it ideal for both beginners and intermediate users. With preloaded CircuitPython and compatibility with MicroPython, C/C++, and the Arduino IDE, this versatile board lets you focus on building and programming robots easily. Perfect for anyone who wants to dive into robotics without the hassle of complex electronics.

Features

• Processor: Dual-core Arm Cortex-M33 processor Raspberry Pi RP2350
• Motor control: can drive up to four brushed DC motors 3.6V-16V / 3A max per channel
• Servo ports: Equipped with 8-channel 5 V servo ports
• GPIO Breakout: Includes an 8-channel GPIO breakout
• Maker ports: Includes 3 Maker ports for connecting various components and sensors
• USB host: Includes a direct USB host enabling plug-and-play use with USB joysticks/gamepads
• Programming: Compatible with MicroPython, C/C++, and Arduino IDE (coming soon)
• Additional features: Includes quick-test buttons, motor output LEDs, user buttons, piezo buzzer, and RGB LEDs (Neopixel-compatible)

Technical Specifications

• Runs on Raspberry Pi RP2350
  • Dual-core Arm Cortex-M33 processor
  • 520KB internal RAM
  • 150MHz clock speed
  • 2MByte Flash
• Robot control board
  • 4 x DC motor drivers (with quick-test buttons)
  • 8 x Servo motors
  • 8 x 3V GPIO Breakout
• Input voltage
  • VIN connector: 3.6V - 16V
  • USB Type-C: 5V
• Maximum DC motor current, per channel
  • Continuous: 3A
  • Peak: 5A
• 24 x Status LEDs
  • 8 x for servo connectors
  • 8 x for 3V GPIO Breakout
  • 8 x for DC motor drivers
• 12 x Buttons
  • 8 x Quick-test buttons for DC motors
  • 2 x User buttons
  • 1 x BOOT button
  • 1 x RST button, for reset
• 3 x Maker Port
• 2 x RGB LED (Neopixel-compatible)
• 1 x USB host
• 1 x Piezo buzzer (with mute button)
• 1 x On/Off switch (with MOSFET surge protection circuit)
• Preinstalled with CircuitPython
• Programming languages
  • CircuitPython
  • MicroPython
  • C/C++
  • Arduino
• Board dimensions: 95.2 x 57.2 x 8 (height) mm

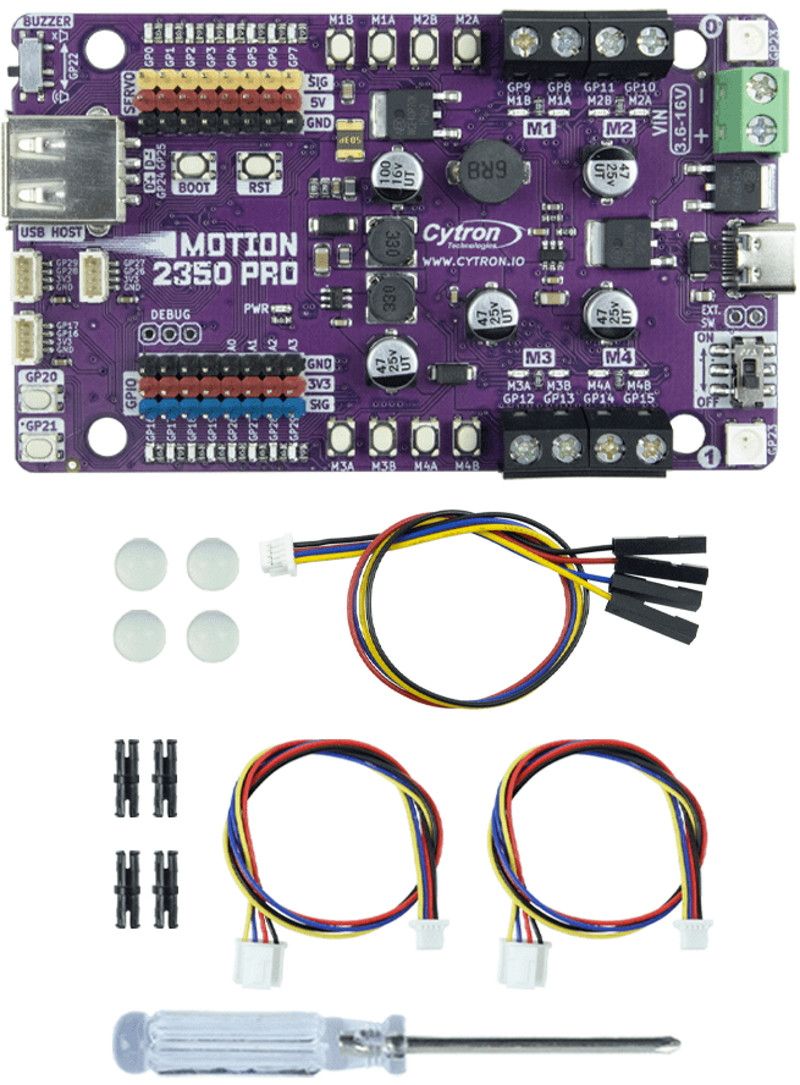

What's in the box

• 1 x MOTION 2350 Pro
• 1 x STEMMA QT / Qwiic JST SH 4-pin cable female connector (150mm)
• 2 x Grove-JST-SH cable (200mm)
• 1 x Silicone pads
• 4 x Plastic pegs
• 1 x Small screwdriver
