Note! This product does not include the Raspberry Pi Pico board.

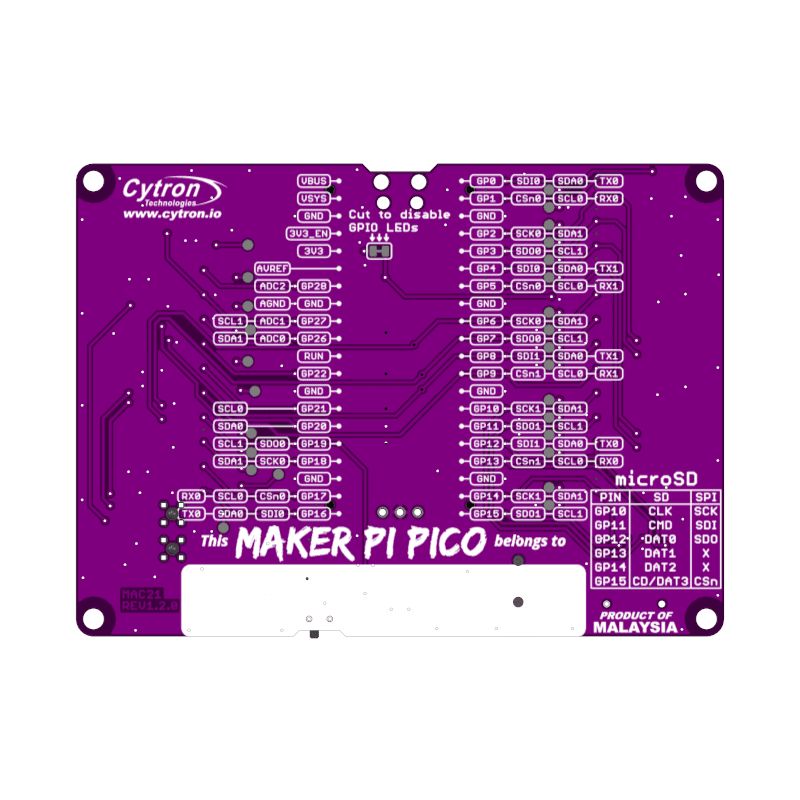

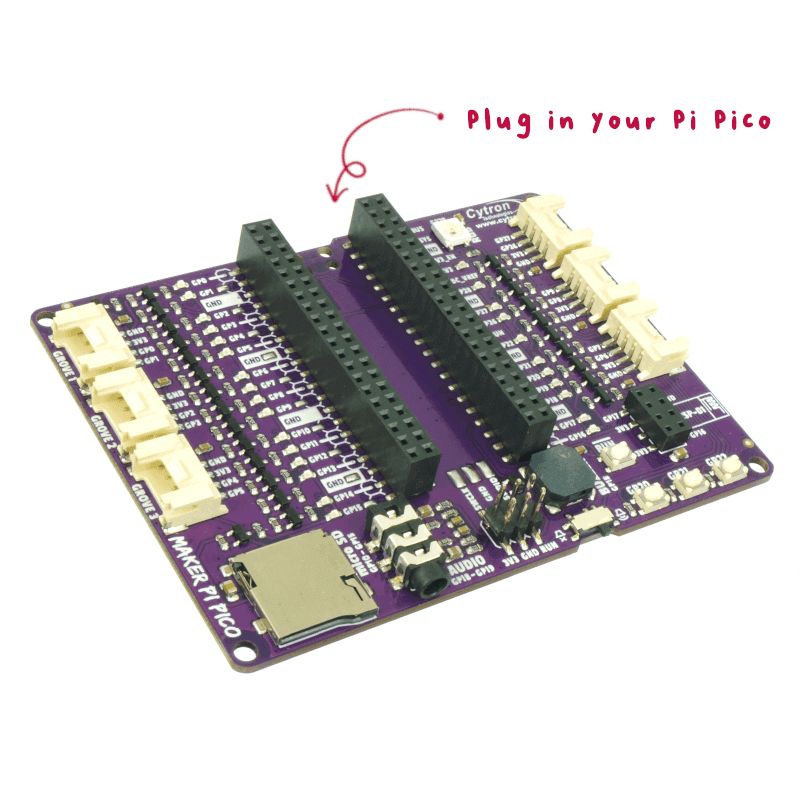

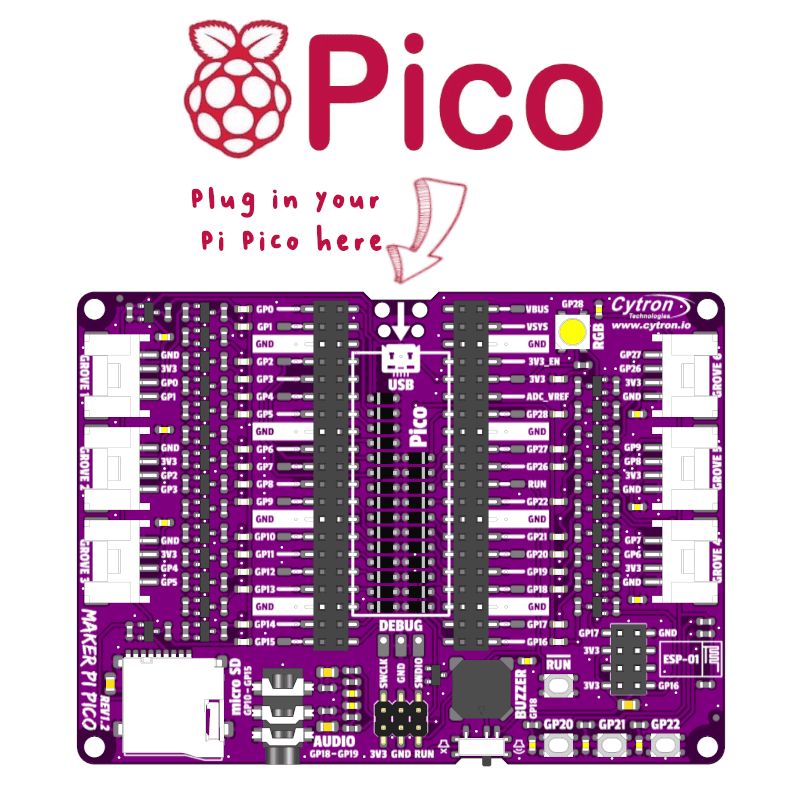

Maker Pi Pico adds the desired Reset button to your Raspberry Pi Pico board and gives you access to all GPIO pins via two 20-pin headers with clear labels. Each GPIO has an indicator LED for convenient code testing and troubleshooting. The bottom layer of this board even includes a comprehensive pinout diagram showing each pin's function.

It is a compact yet feature-rich board designed to be at the heart of your STEM and robotics projects. Use jumper wires and/or Grove cables to connect any sensor and output modules to expand its capabilities. No soldering required!

[img-24269-left-large_default]

CircuitPython comes preloaded on the Maker Pi Pico, and it runs a simple demo program right out of the box. Plug it into your computer with a USB micro cable, and you will be greeted by a melody and LED lights. Press the buttons to test the onboard basic features immediately. You can also add a micro-SD card, stereo speakers, and an I2C OLED display module to try more. Have fun!

Maker Pi Pico can be programmed with CircuitPython, MicroPython and C/C++. Just connect it to any computer (including a Raspberry Pi SBC) via USB and drag and drop files onto it to upload your program. It's as easy as copying a file to a USB drive!

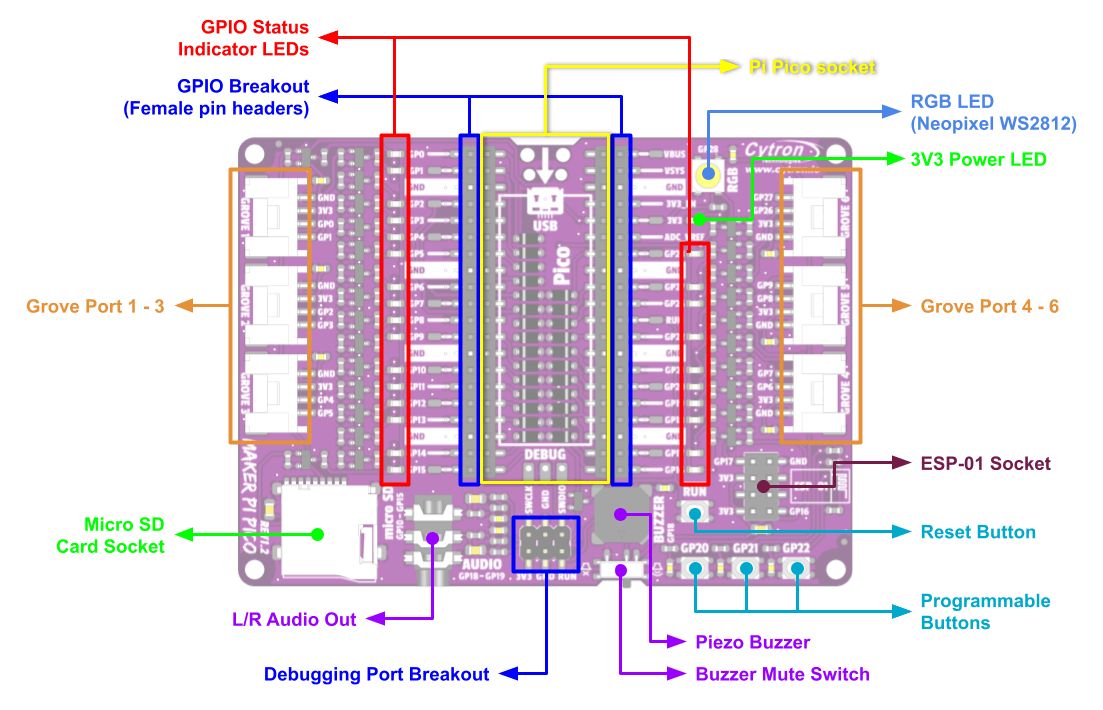

Board Layout

[img-24270-left-large_default]

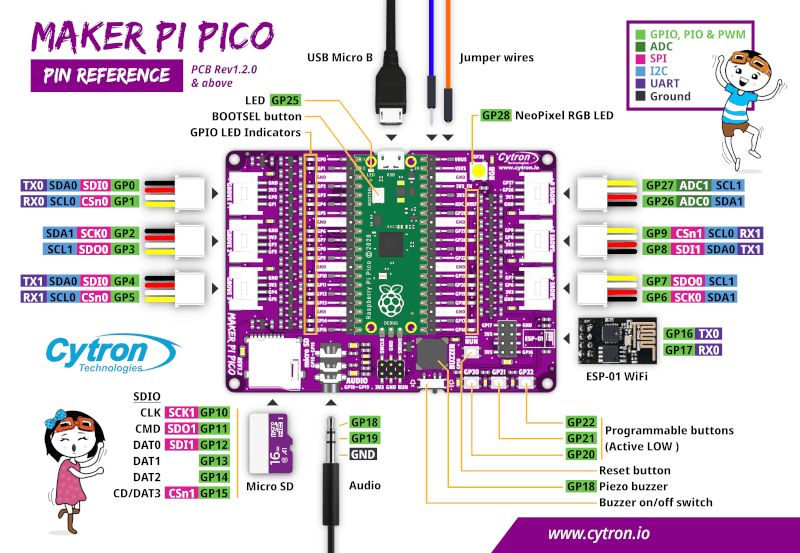

Features

• Ready to use right away. No soldering!
• Access to all Raspberry Pi Pico pins via two 20-pin headers.

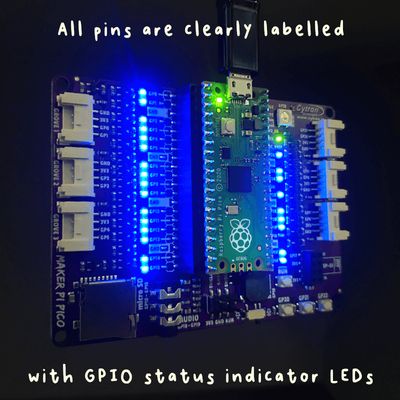

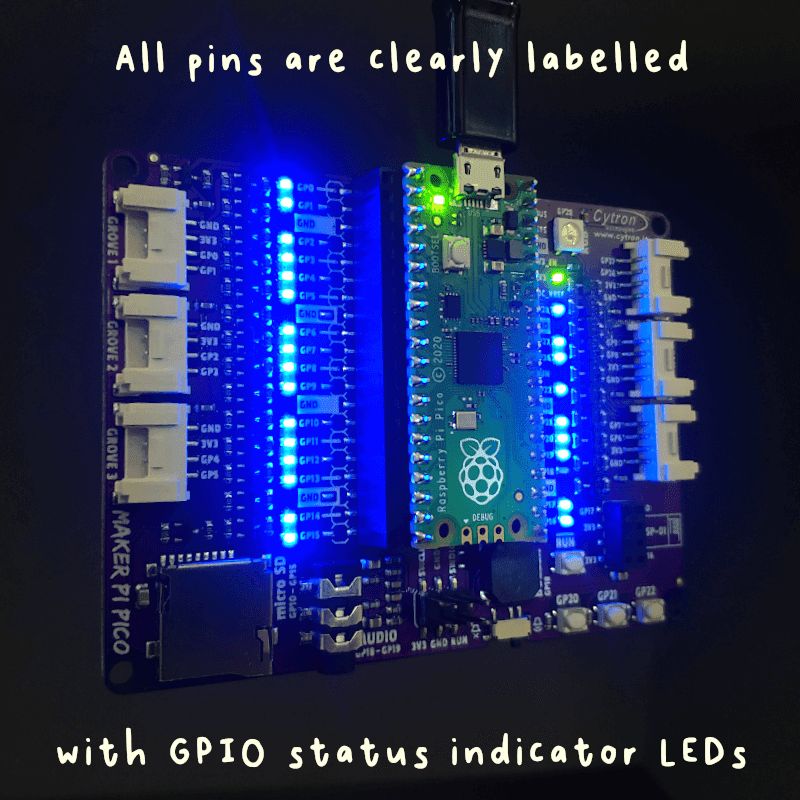

• Indicator LEDs on all GPIO pins
• 3x programmable buttons (GP20-22)
• 1x RGB LED - NeoPixel (GP28)
• 1x Piezo buzzer (GP18)
• 1x 3.5 mm stereo audio jack (GP18-19)
• 1x Micro SD card slot (GP10-15)
• 1x ESP-01 connector (GP16-17)
• 6x Grove ports

Package Contents

• 1 x Maker Pi Pico (Note! Raspberry Pi Pico is not included!)

Resources

• Maker Pi Pico datasheet
• Maker Pi Pico Rev1.2.0 Schematic Example
• Maker Pi Pico Demo & example code
• 3D CAD
• Official Raspberry Pi Pico page
• Getting started with Raspberry Pi Pico
• Raspberry Pi Pico datasheet
• RP2040 Datasheet
• Raspberry Pi Pico Python SDK
• Raspberry Pi Pico C/C++ SDK
