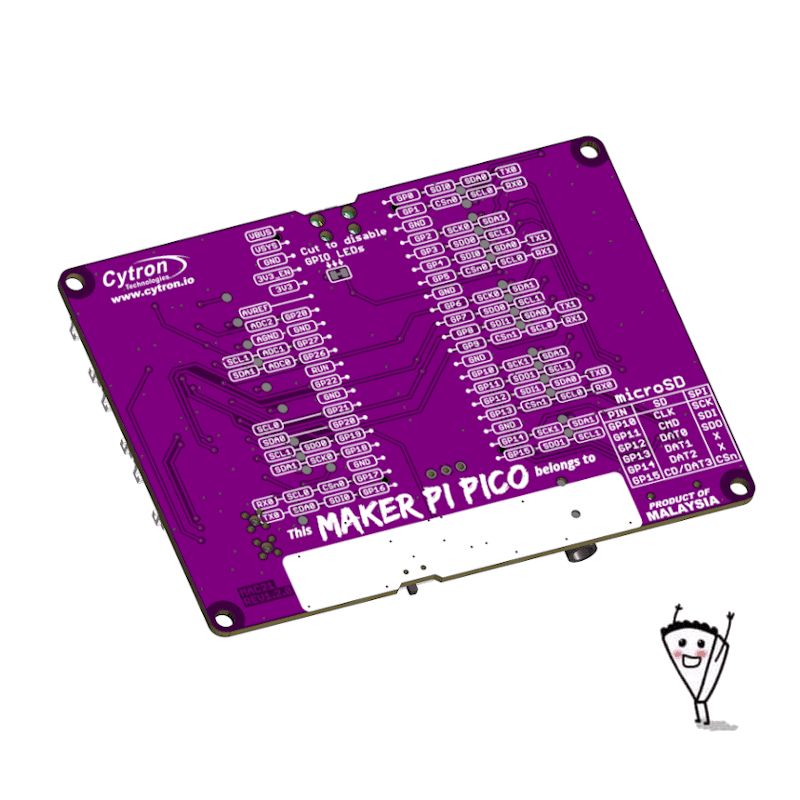

Maker Pi Pico includes the Raspberry Pi Pico's sought-after reset button and gives you access to all GPIO pins via two 20-pin headers with clear labels. Each GPIO has an LED indicator for convenient code testing and troubleshooting. The bottom layer of the board even includes a comprehensive pinout diagram showing each pin’s function.

Note! This product comes with a Raspberry Pi Pico soldered to the board.

It is a compact but feature-rich board designed to be at the heart of your STEM and robotics projects. Use jumper wires and/or Grove cables to connect any sensor and output modules to expand its capabilities. No soldering required!

[img-24262-left-large_default]

CircuitPython is preloaded on the Maker Pi Pico, and it runs a simple demo program straight out of the box. Plug it into a computer with a USB micro cable, and you’ll be greeted by a melody and LED lights. Press the buttons to test the onboard basic features right away. You can also add a micro-SD card, two-channel speakers and an I2C OLED display module to try more. Have fun!

Maker Pi Pico can be programmed with CircuitPython, MicroPython and C/C++. Just connect it to any computer (including a Raspberry Pi SBC) via USB and drag and drop a file onto it to upload your program. It’s as easy as copying a file to a USB stick!

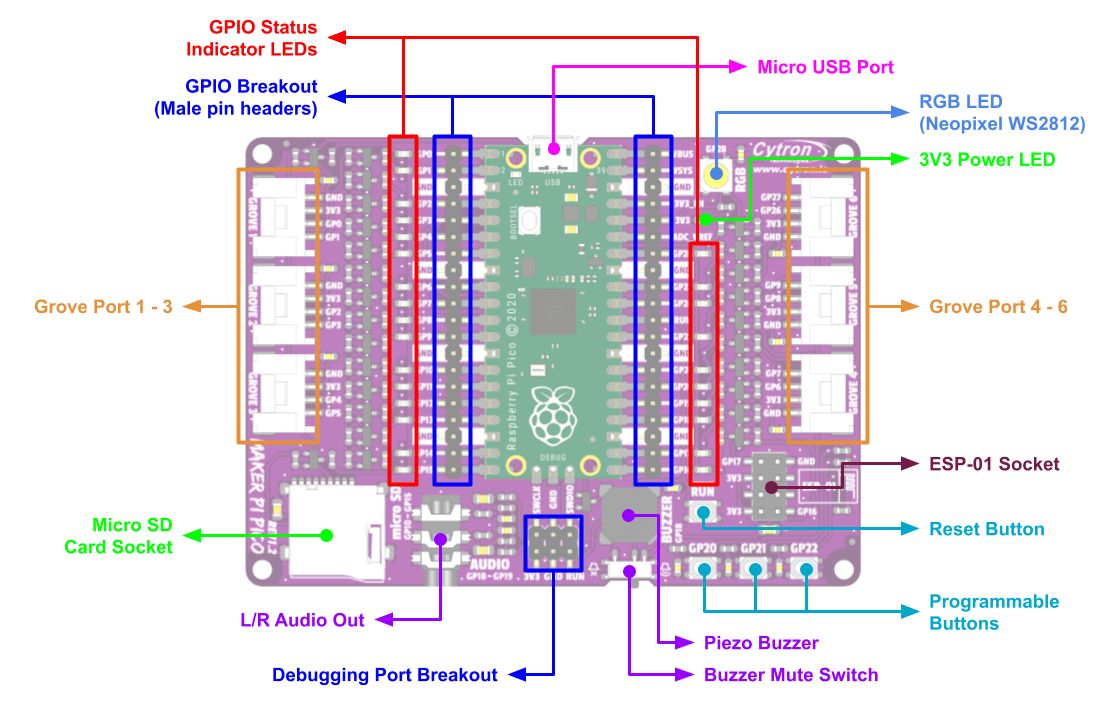

Board layout

[img-24263-left-large_default]

Features

• Ready to use. No soldering!
• Access to all Raspberry Pi Pico pins via two 20-pin headers.

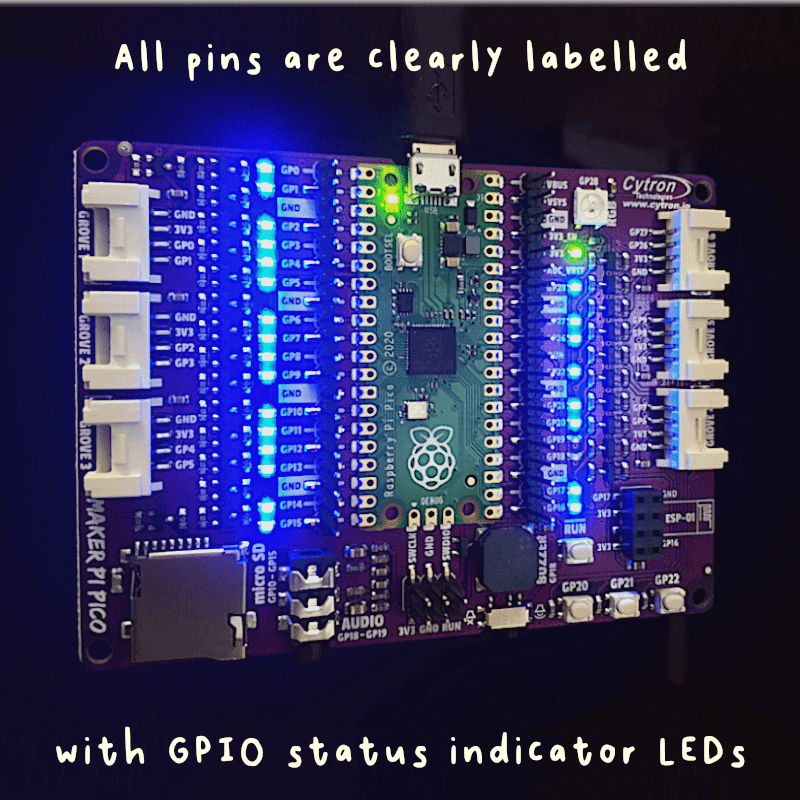

• LED indicators on all GPIO pins
• 3x programmable buttons (GP20-22)
• 1x RGB LED - NeoPixel (GP28)
• 1x piezo buzzer (GP18)
• 1x 3.5 mm stereo audio jack (GP18-19)
• 1x Micro SD card slot (GP10-15)
• 1x ESP-01 connector (GP16-17)
• 6x Grove ports

Package contents

• 1 x Maker Pi Pico
  (Raspberry Pi Pico soldered to the board, CircuitPython preloaded)
• 1x Pinout reference card

Resources

• Maker Pi Pico - datasheet
• Maker Pi Pico - schematic Rev1.0.0-1.1.0 and Rev1.2.0.
• Maker Pi Pico Demo & example code
• 3D CAD
• Official Raspberry Pi Pico page
• Getting started with the Raspberry Pi Pico
• CircuitPython for Raspberry Pi Pico
• Raspberry Pi Pico datasheet
• RP2040 Datasheet
• Raspberry Pi Pico Python SDK
• Raspberry Pi Pico C/C++ SDK

Links

• Video
