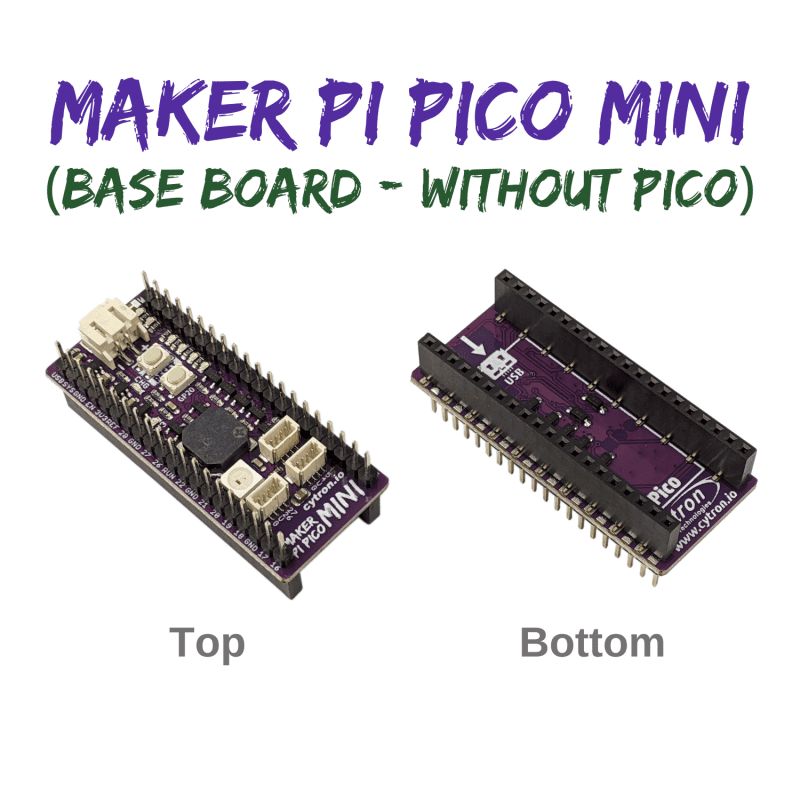

Note! This is only a base board for Raspberry Pico boards!

NOTE: Maker Pi Pico Mini is available in 3 options:

1. MAKER-PI-PICO-MINI (pre-soldered Raspberry Pi Pico with CircuitPython pre-installed).
2. MAKER-PI-PICO-MINI-W (pre-soldered Raspberry Pi Pico W - wireless, CircuitPython preloaded).
3. MAKER-PI-PICO-MINI-NB (Without Pico / Pico W. Includes pin headers)

You love the Maker Pi Pico, but it doesn’t fit in your project? Now we have the Maker Pi Pico Mini. It is powered by the same great Raspberry Pi Pico / Pico-W, and it has inherited most of the useful features of its larger sibling, such as GPIO status LEDs, a WS2812B Neopixel RGB LED, a passive piezo buzzer, and don’t forget the user button and reset button.

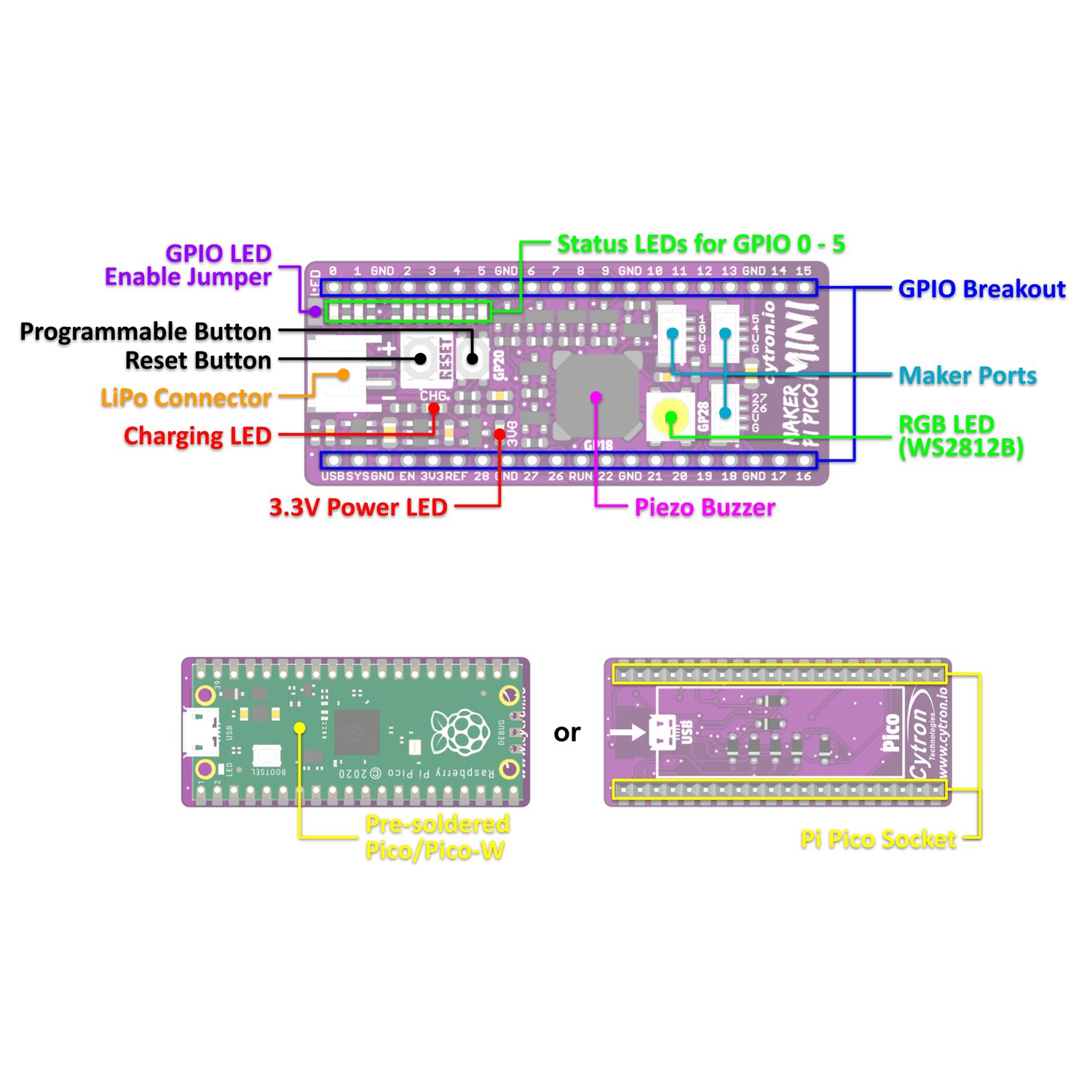

Features

• Powered by Raspberry Pi Pico / Pico-W
• Single-cell LiPo connector with overcharge / overdischarge protection circuit, chargeable via USB.
• 6x Status indicator LEDs for GPIOs
• 1x Passive piezo buzzer (capable of playing a musical note or melody).
• 1x Reset button
• 1x User-programmable button
• 1x RGB LED (WS2812B Neopixel)

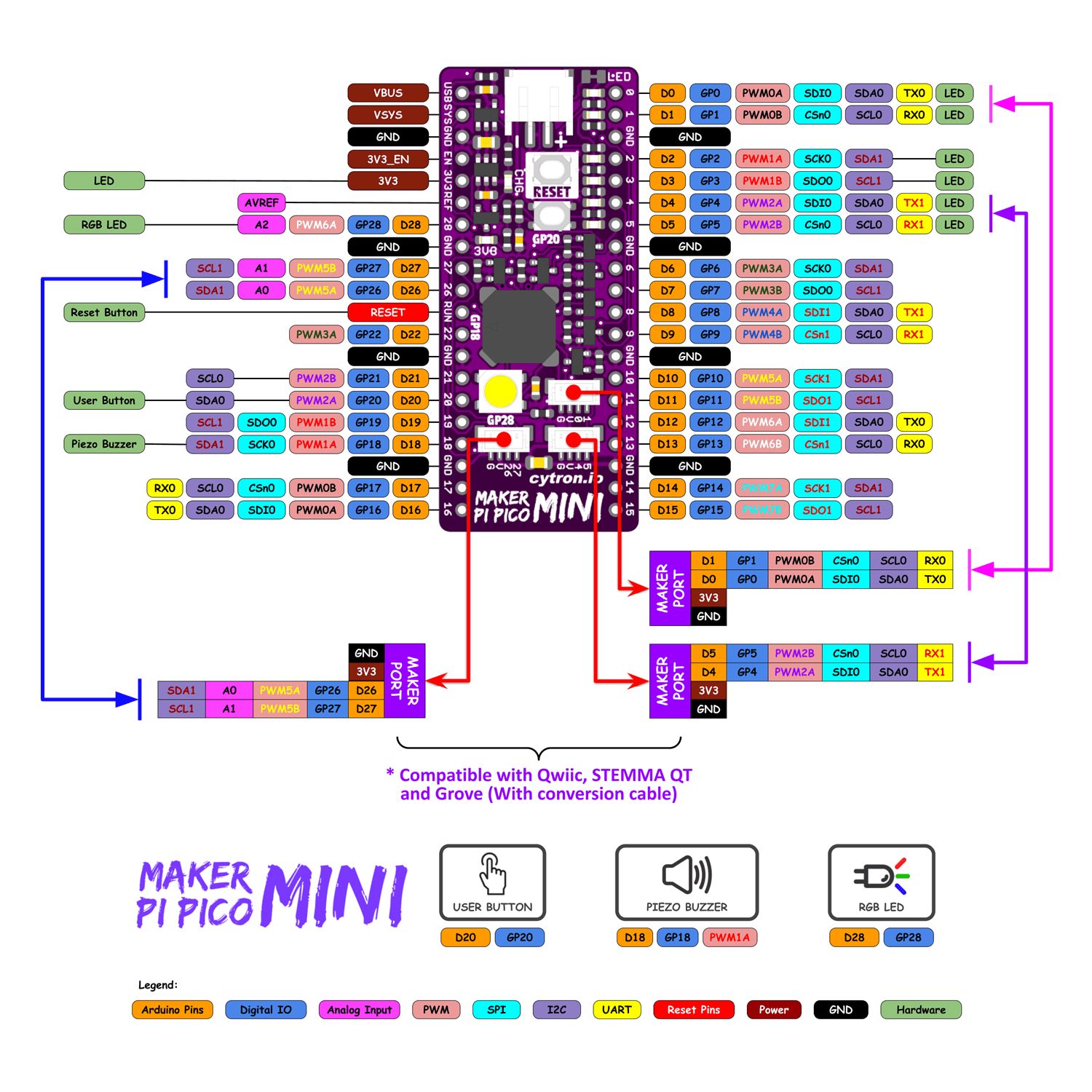

• 3x Maker ports, compatible with Qwiic, STEMMA QT and Grove (via adapter cable).
• Supports Arduino IDE, CircuitPython and MicroPython
• Dimensions: 23.12mm x 53.85mm.

[img-25809-left-desc_default]

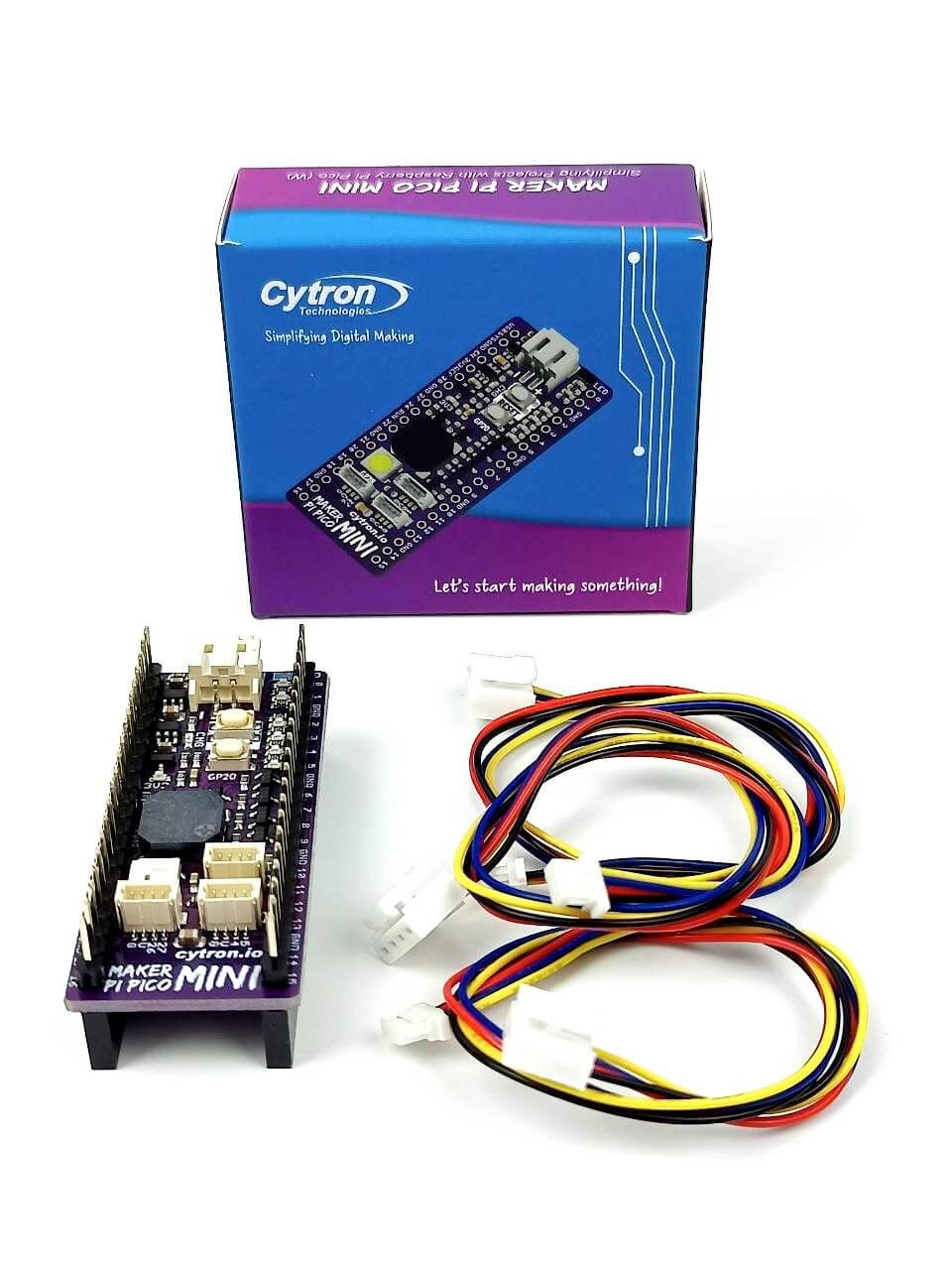

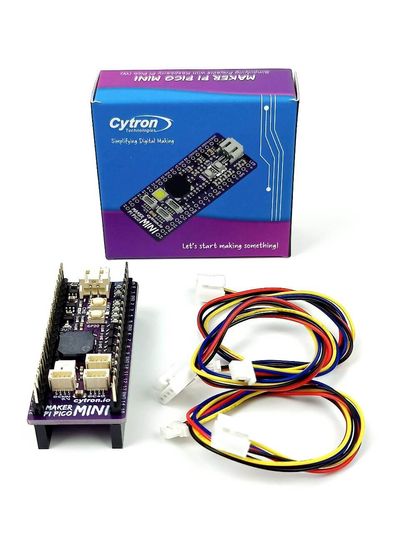

Package contents

• 1 x Maker Pi Pico Mini (Without Pico / Pico W, but includes pin headers).
• 3 x Grove-JST-SH (Qwiic / STEMMA QT) cable

Links

• Maker Pi Pico Mini - datasheet
• Official Raspberry Pi Pico page
• Getting started with the Raspberry Pi Pico
