The Maker Feather AIoT S3 is a development board that allows users to add wireless connectivity to IoT devices and the ability to run artificial intelligence (AI) on the device. The development board is based on an ESP32 microcontroller, which features two 240 MHz CPU cores and is equipped with a variety of interfaces such as Wi-Fi, Bluetooth and LoRa. This enables connecting to various IoT networks and sensors that can be used for remote monitoring, smart home applications, medical devices and industrial automation.

With the Maker Feather AIoT S3, users can also integrate AI into their devices. The development board includes a preinstalled micro-intelligence platform that enables the use of machine learning on IoT devices. This allows users to process real-time data directly on the device and analyze it using AI.

The development board also contains a built-in charge-protected battery system that enables wireless operation. The Maker Feather AIoT S3 is designed to be very compact and is easy to use through programming. This makes it an excellent choice for developers who want to combine IoT devices with AI in a simple and efficient way.

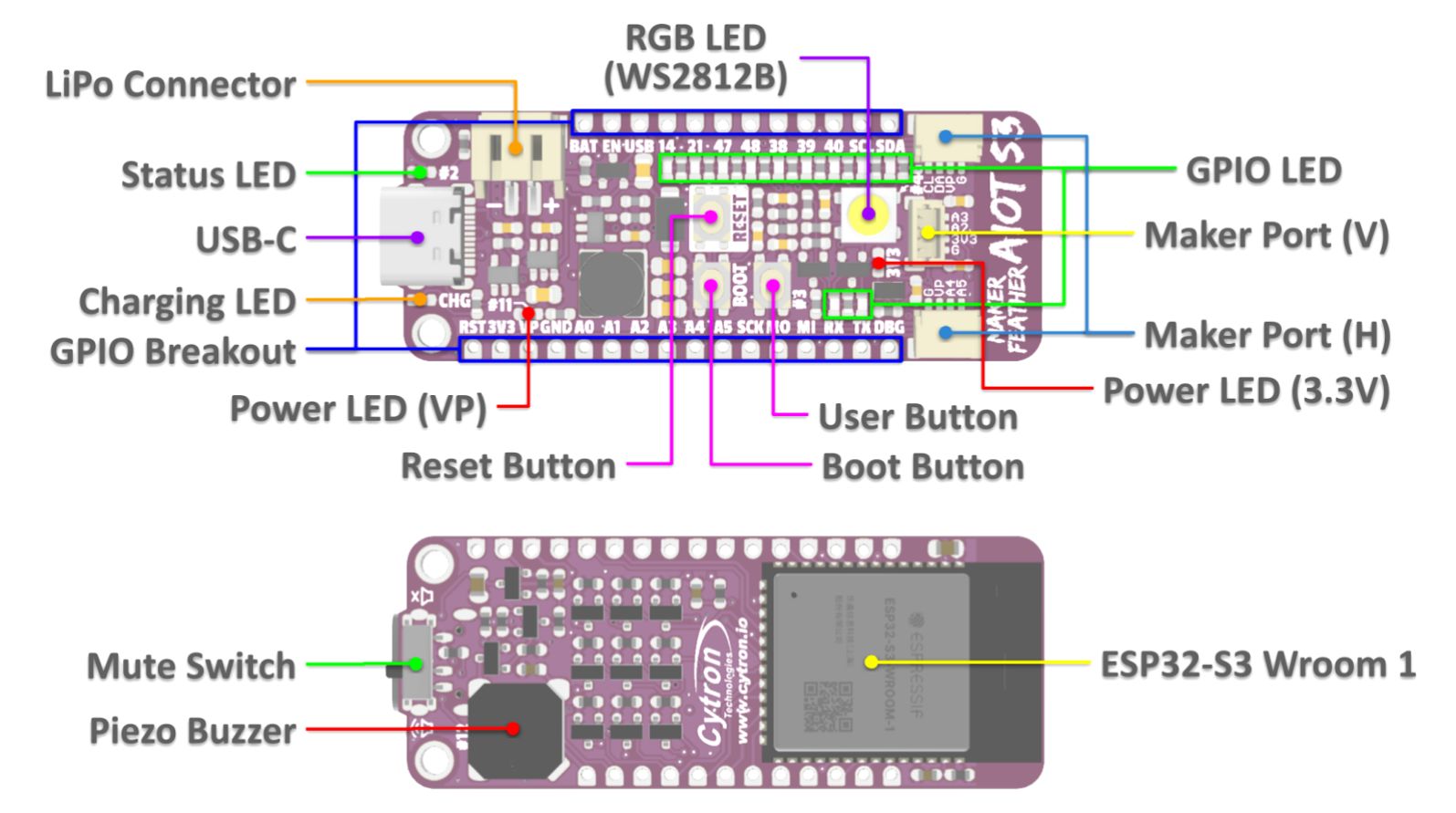

Features

• Equipped with ESP32-S3 chip
• Single-cell LiPo connector over-/under-charge protection circuit, rechargeable via USB
• 11x status indicator LEDs for GPIO pins
• 1x programmable buzzer (connected to GPIO12)
• 1x reset button
• 1x user-programmable button (GPIO3)
• 1x RGB LED (WS2812B Neopixel)
• 3x Maker Ports, compatible with Qwiic, STEMMA QT and Grove (with adapter cable)
• Support for Arduino, CircuitPython, MicroPython and Espressif IDF

[img-28284-left-desc_default]

Contents

• 1 x Maker Feather AIoT S3 (WITHOUT pre-soldered female headers)
• 3 x Grove to JST-SH (Qwiic / STEMMA QT) Cable

Links

• Maker Feather AIoT S3 Datasheet
• Maker Feather AIoT S3 Schematic
• Maker Feather AIoT S3 CAD File
• ESP32-S3-WROOM-1 Datasheet
• Getting Started with Maker Feather AIoT S3 using Arduino IDE
• Getting Started with Maker Feather AIoT S3 using CircuitPython
• CircuitPython for Maker Feather AIoT S3
• CircuitPython Libraries Bundle
