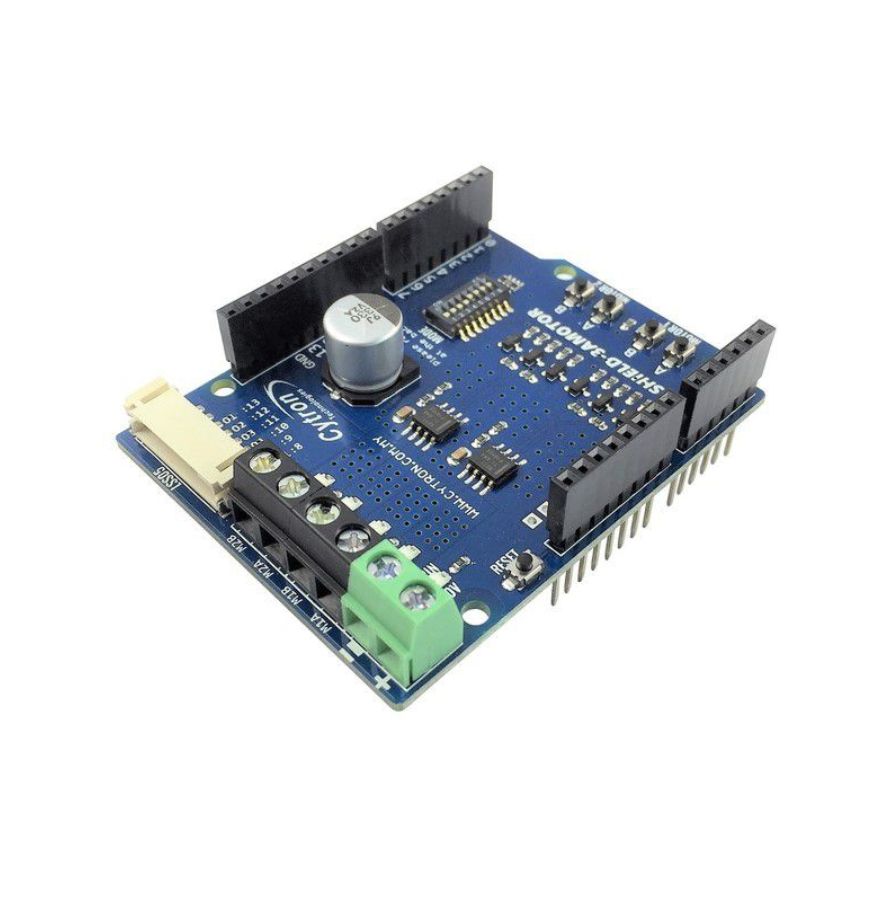

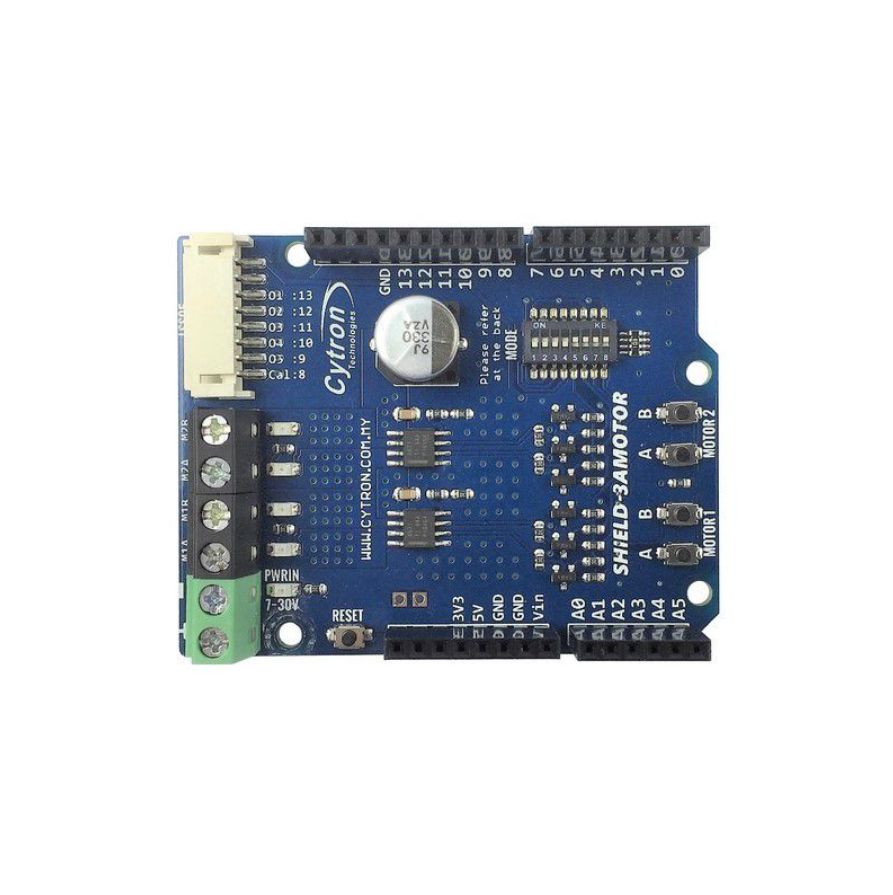

Cytron SHIELD-3AMOTOR - 1.2Amp 7V-30V DC Motor Driver Shield for Arduino (2 Channels)

22,65 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Cytron Motor Driver shield, dual channels, which offers 3A peak of current and 1.2A of current continuously at each channel. It is compatible with most Arduino main boards, Arduino or Genuino UNO, Mega, Leonardo, Zero, 101 and etc.

SHIELD-3AMOTOR uses DRV8871 SMD IC and support for both signed magnitude and locked anti-phase. Compare to the other shields, this item can handle higher current up to 3A together with auto current limit protection.

Features

Bi-directional control for dual brushed DC motor.
Support motor voltage from 7VDC to 30VDC.
Maximum current up to 3A peak and 1.2A continuously, each channel.
Current limit protection.
Support 3.3V and 5V logic level input.
Stackable I/O header pin.

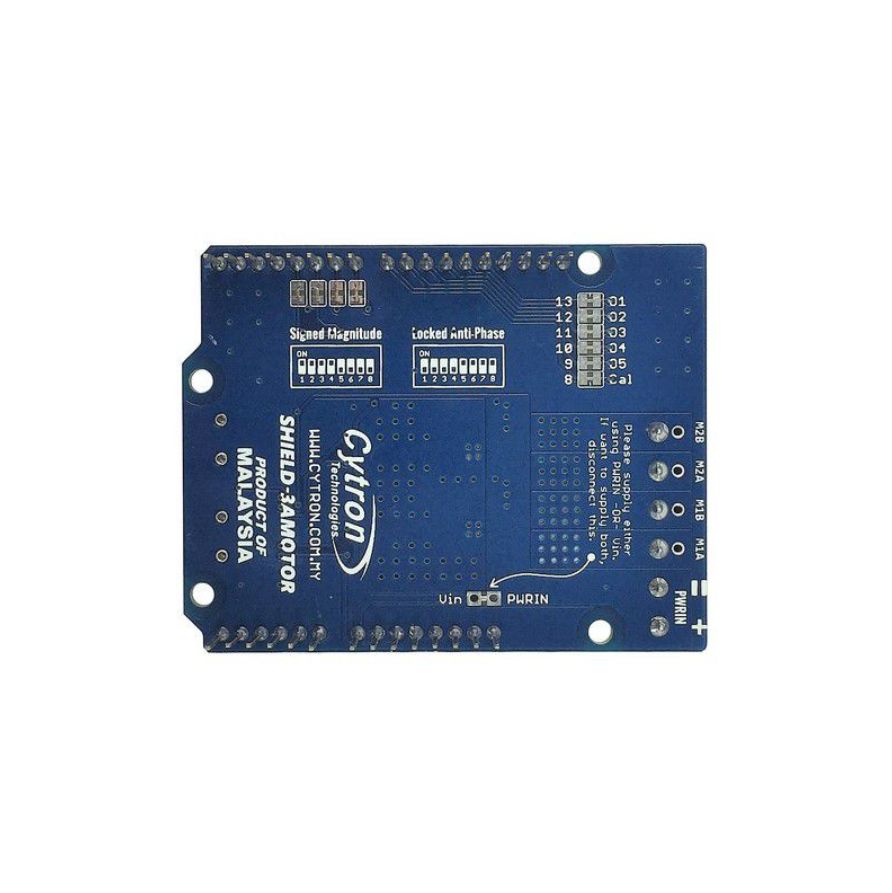

Selectable DIP switch mode for Signed Magnitude and Locked Anti-Phase.
Quick test switch for both channel.
Ready with connector for LSS05 (Auto-calibrate line sensor) for easy integration of line following robot.
NO POLARITY PROTECTION FOR V MOTOR.

Specifications

Operating Modes
Motor Channel	2
Operating Voltage (VDC)	7 to 30
Peak Current (A)	3 (per channel)
Continuous Current (A)	1.2
Arduino Shield	YES
PWM (Lock-Antiphase and Sign-Magnitude)	YES
UART	NO
Analog	NO
RC Servo Signal	NO
Special Protection
Polarity Protection	NO
Appearance
LEDs Indicator	YES
Test/Manual Button	YES
Other Features
others	Socket for LSS05 and Selectable PWM and DIR pin

Product Information

Availability Temporarily out of stock
Manufacturer Cytron
Product path Home development-cards Arduino Arduino expansion boards (shields) Cytron DC Motor Driver Shield 1.2A 7-30V 2CH
SKU ARD-SHIELD3AMOTOR
Attributes
- Compatible Arduino
- Channels 2
- Manufacturer's model SHIELD-3AMOTOR
- Click for more details https://www.cytron.io/p-1.2amp-7v-30v-dc-motor-driver-shield-for-arduino-2-channels
