This product is developed by a non-technical person aims to solve the problem for beginners who want to learn Arduino and digital making for the first time. The learning material is intentionally designed to allow the beginners to see the results (programming output) immediately, get excited then follow by the superficial explanation on how things work.

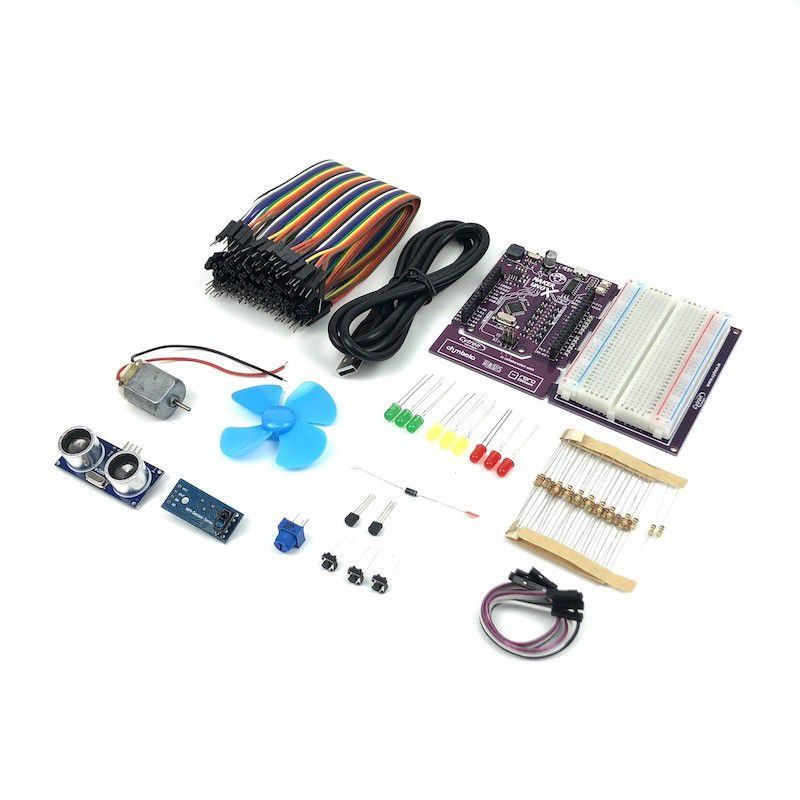

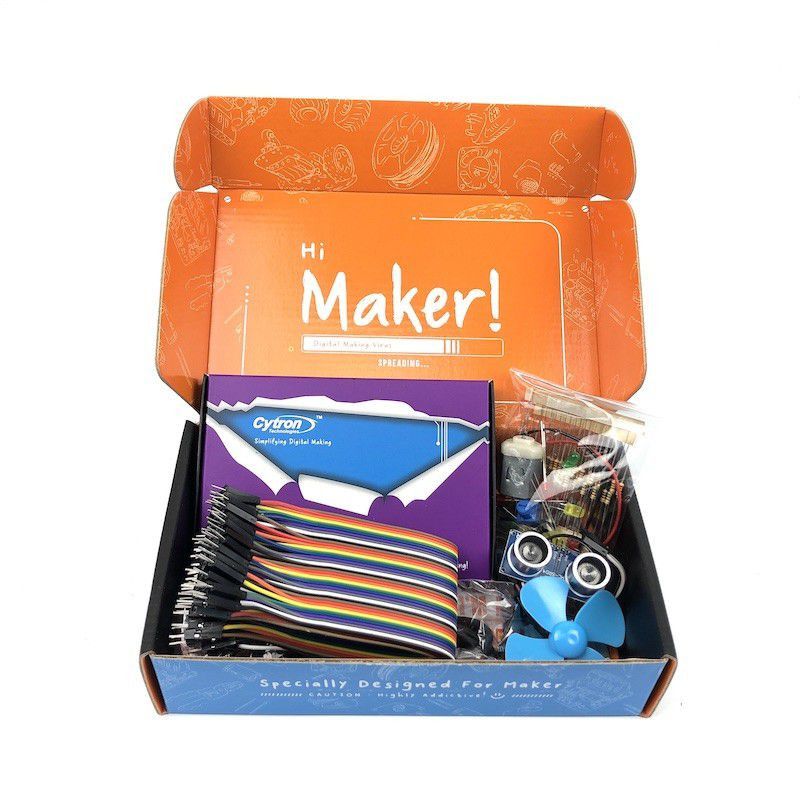

Parts & Material Included

• 1 x Maker UNO X
• 1 x 3V Miniature Brush Motor
• 1 x DIY 4 Blades Motor Propeller (blue)
• 1 x 3 - 5.5V SR04 Ultrasonic Sensor (after 18th Mar 2021)
• 1 x IR Sensor Module
• 3 x LED 5mm Red
• 3 x LED 5mm Yellow
• 3 x LED 5mm Green
• 3 x Pushbutton Switch
• 10 x Resistor 220 Ohm
• 10 x Resistor 1K Ohm
• 10 x Resistor 10K Ohm
• 1 x Diode 1N4007
• 2 x Transistor 2N2222
• 1 x Finger Preset 10K
• 1 x 40 Ways Male to Male Jumper
• 1 x 40 Ways Male to Female Jumper
• 1 x Micro B USB Cable
• 1 x Breadboard 8.5cm x 5.5cm

Resources

• Arduino Learning Guide for Beginners with Maker UNO X (PDF)
• CH34X driver (Please ensure the Maker UNO is plug into computer USB port during driver installation)
  • Windows (V3.5 Mar2019)
  • Mac OS (V1.5 Mar2019)
  • Linux (V1.5 Mar2019) (Normally is readily installed)
  • CH34X Driver - Get the latest driver from the factory
• Maker UNO's Default Program
• Arduino IDE Download

Free eBook for Maker Uno X with seven lessons and 17 projects

1. Copy the codes given blindly.
2. Upload the code to the board. See the result immediately, get excited.
3. Codes are explained line by line using the layman language.
4. Learn extra electronics knowledge and coding syntax if you want.

Click here to download

LESSON 1 DIGITAL OUTPUT

• Project 1: Turn On An LED
• Project 2: Blink An LED
• Project 3: Blink the LEDs In Sequence

LESSON 2 DIGITAL INPUT

• Project 4: Onboard Pushbutton Switch
• Project 5: External Pushbutton Switch

LESSON 3 ANALOG OUTPUT

• Project 6: Construct An LED Circuit
• Project 7: Fade An LED

LESSON 4 MELODY TONE

• Project 8: Compose Basic Tone
• Project 9: Compose "Happy Birthday" Melody
• Project 10: Optimize Your Codes

LESSON 5 ANALOG INPUT

• Project 11: Display Analog Value On Serial Monitor
• Project 12: Read Analog IR Sensor
• Project 13: IR Sensor To Detect Black Line

LESSON 6 DC MOTOR

• Project 14: Control A DC Motor
• Project 15: Controlling A Motor Speed Using A Pushbutton

LESSON 7 ULTRASONIC SENSOR

• Project 16: Setting Up Ultrasonic Sensor
• Project 17: Build A Car's Rear Bumper Sensor
