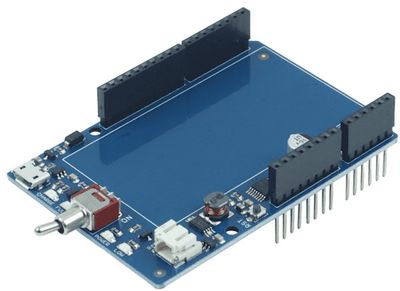

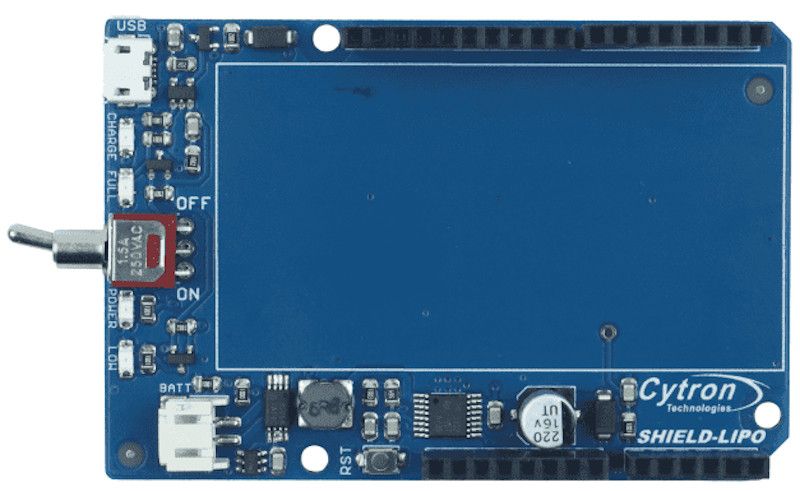

This Arduino expansion board (shield) can be used with any lithium-ion or lithium polymer battery (3.7/4.2 V).

Features

• Compatible with any Arduino UNO R3-like boards.
• Designed for use with LiPo-type batteries.
• Start-up maximum continuous current 700 mA.
• Maximum continuous current 1000 mA.
• Overload cutoff: about 1100 mA.
• LiPo charger on board: maximum charge current 500 mA.
• Undervoltage cutoff on board: 2.40 V.
• Charge, full, low battery and power LEDs on board.
• Includes power switch.
• USB Micro-B port for charging.

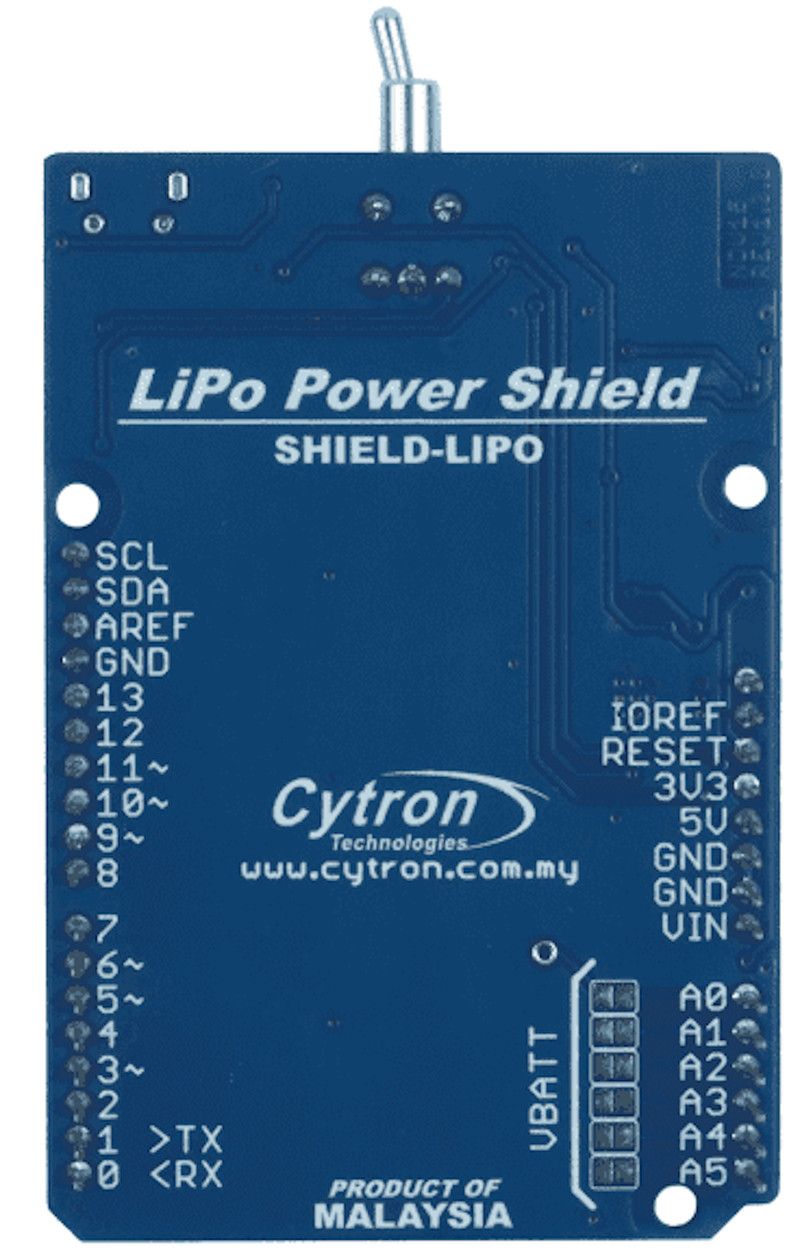

• Optional battery voltage monitoring A0 - A6 (via pads on the bottom of the board).
• Dimensions: 80 mm x 54 mm (without power switch).
