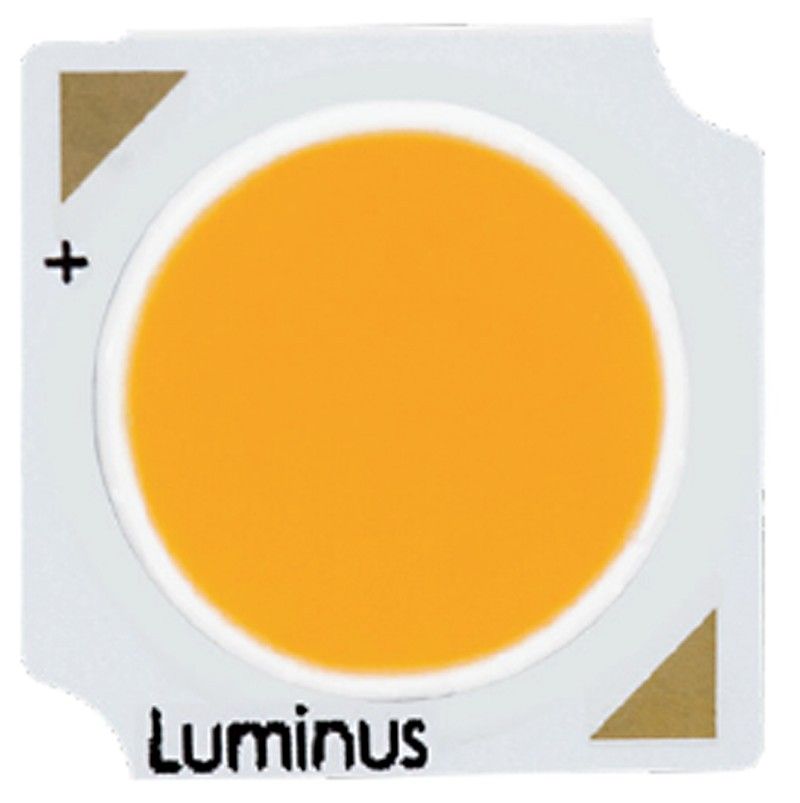

Luminus CXM-9-40-80-36-AC40-F5-3 - POWER LED, white 4000K, 36V, 12W

4,53 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Generation 4 CXM-9 COB Array White LED
Light-emitting surface (LES) diameter: 9.8 mm.
Correlated color temperature (CCT): 4000K (3-step MacAdam ellipse).
Color rendering index (CRI): >80
Typical forward voltage: 33.5 V (36 V series)
Typical forward current: 360mA (max 1100mA)
Typical power: 12W (max 41W)
Typical luminous flux: 1960lm @ 360mA Tj=85C

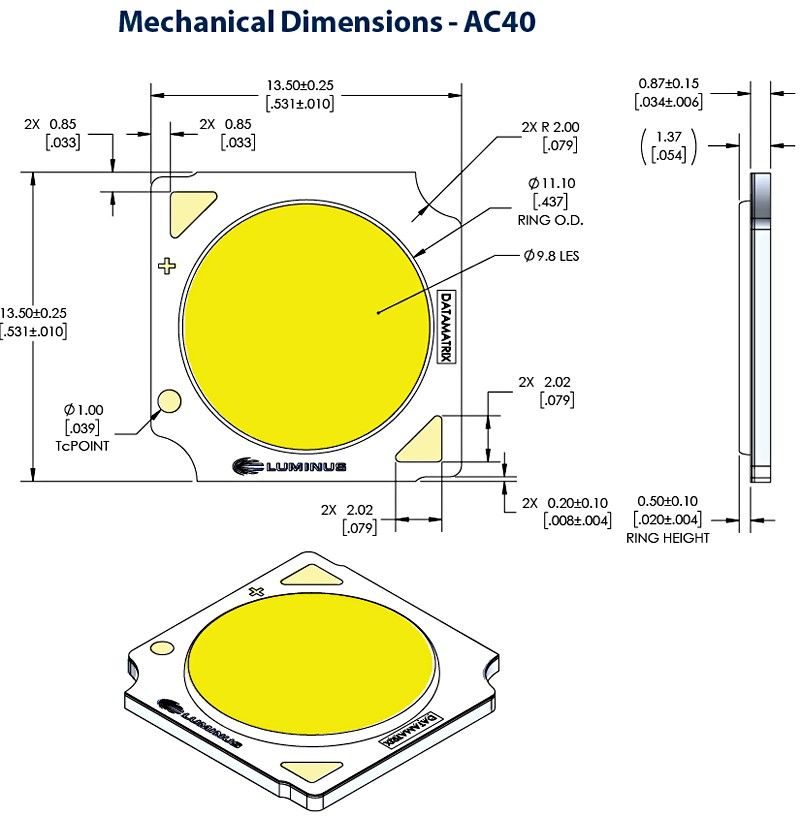

Size: 13.5 x 13.5 x 1.37 mm.

Compatible drivers

Cuvée KAW-12E35IAD/R

Cuvée KAW-18E50ITD/R

Cuvée KAW-24E70ITD/R

Product Information

Availability In stock
Manufacturer Luminus
Product path Home Elgood representations Luminus CXM-9-40-80-36-AC40-F5-3
SKU CXM9408036AC40F53
Attributes
- Color valkoinen
- Voltage class 36V
- Power class 12W
- Manufacturer's model CXM-9-40-80-36-AC40-F5-3
- Click for more details https://www.luminus.com/products/cobarrays/standard-gen4
