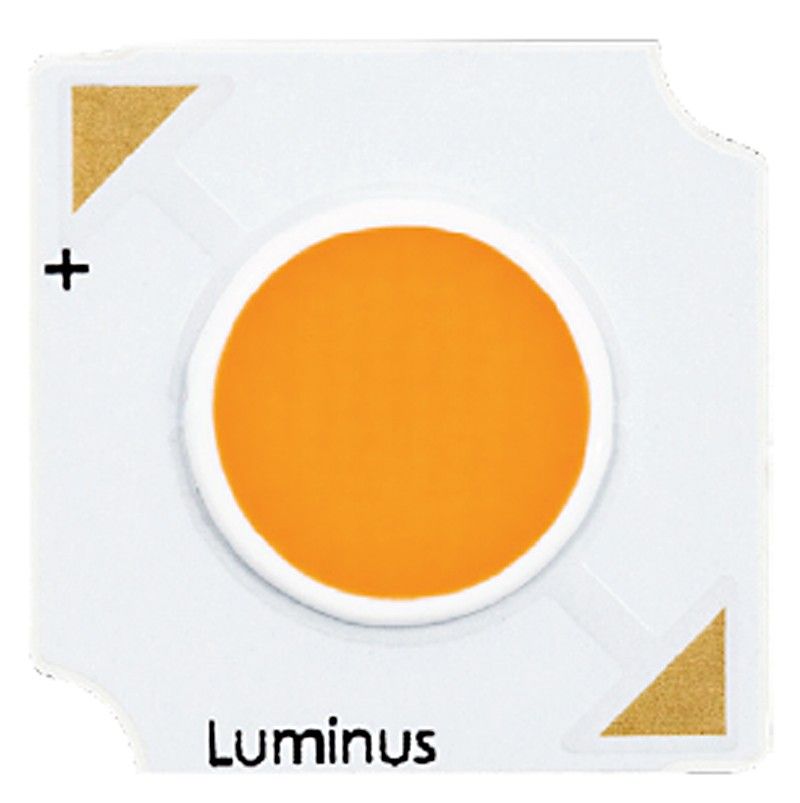

Luminus CXM-6-40-80-36-AC40-F5-3 - POWER LED, white 4000K, 36V, 5W

2,46 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Generation 4 CXM-6 COB Arrays White LED
Light-emitting surface (LES) diameter: 6.3 mm.
Correlated color temperature (CCT): 4000K (3-step MacAdam ellipse).
Color rendering index (CRI): >80
Typical forward voltage: 33.6 V (36 V series)
Typical forward current: 150 mA (max 450 mA)
Typical power: 5 W (max 17 W)
Typical output: 830 lm @ 150 mA Tj=85°C

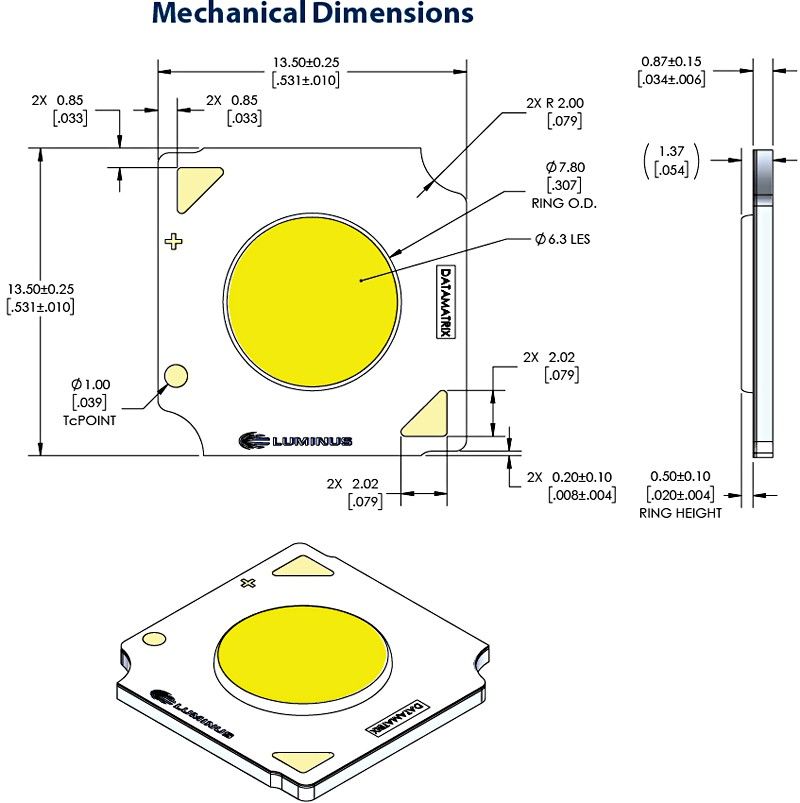

Size: 13.5 x 13.5 x 1.37 mm.

Compatible drivers

Cuvée KAW-10E28IAD/R

Product Information

Availability In stock
Manufacturer Luminus
Product path Home Elgood representations Luminus CXM-6-40-80-36-AC40-F5-3
SKU CXM6408036AC40F53
Attributes
- Color valkoinen
- Voltage class 36V
- Power class 5W
- Manufacturer's model CXM-6-40-80-36-AC40-F5-3
- Click for more details https://www.luminus.com/products/cobarrays/standard-gen4
