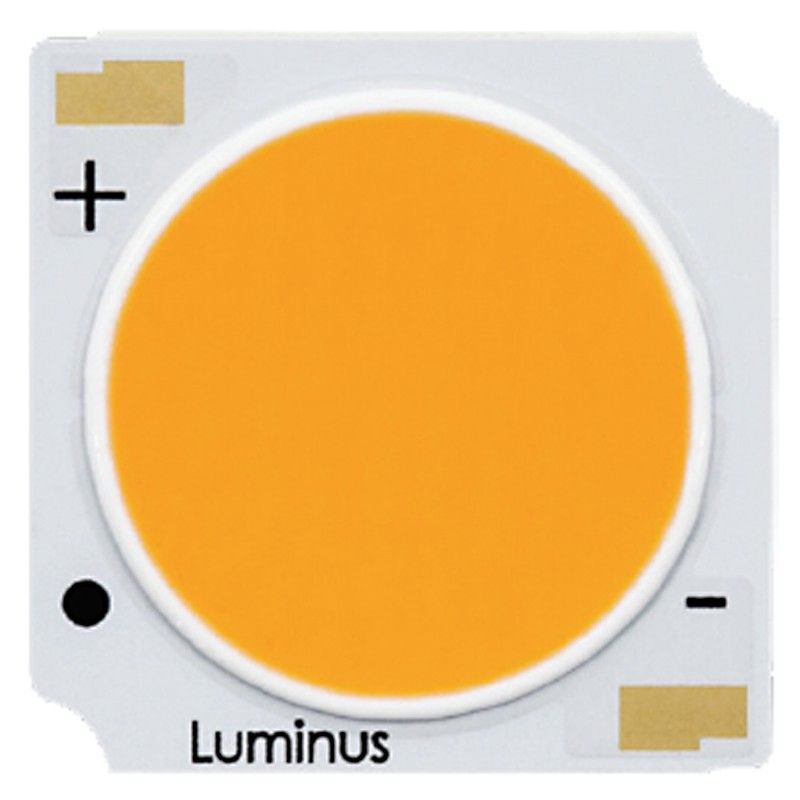

Luminus CXM-14-40-80-36-AC40-F5-3 - POWER LED, white 4000K, 36V, 24W

10,48 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Generation 4 CXM-14 COB Arrays White LED
Light-emitting surface (LES) diameter: 14,5 mm.
Correlated color temperature (CCT): 4000K (3-step MacAdam Ellipse).
Color rendering index (CRI): >80
Typical forward voltage: 33,5 V (36 V series)
Typical forward current: 720mA (max 2000mA)
Typical power: 24W (max 75W)
Typical luminous flux: 4140lm @ 360mA Tj=85C

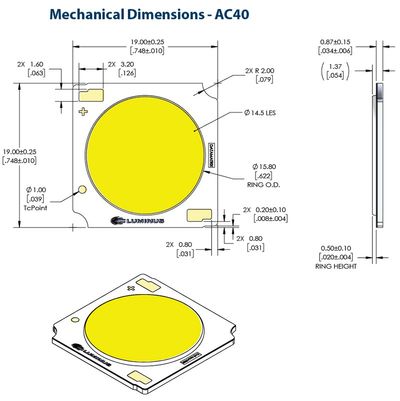

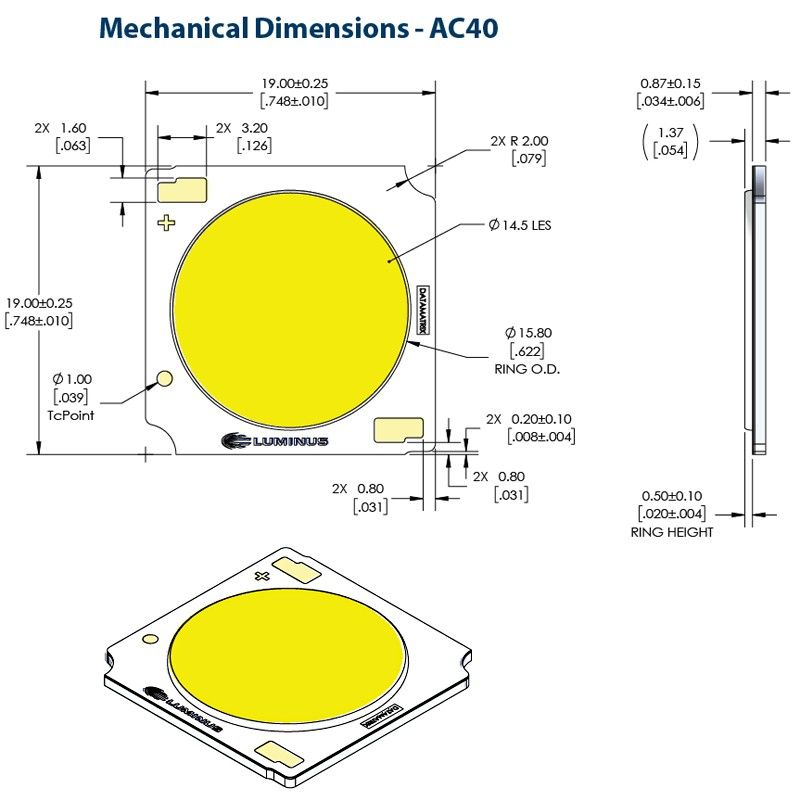

Size: 19,0 x 19,0 x 1,37 mm.

Compatible drivers

Cuvée KAW-24E70ITD/R

Product Information

Availability In stock
Manufacturer Luminus
Product path Home Elgood representations Luminus CXM-14-40-80-36-AC40-F5-3
SKU CXM14408036AC40F53
Attributes
- Color valkoinen
- Voltage class 36V
- Power class 24W
- Manufacturer's model CXM-14-40-80-36-AC40-F5-3
- Click for more details https://www.luminus.com/products/cobarrays/standard-gen4
