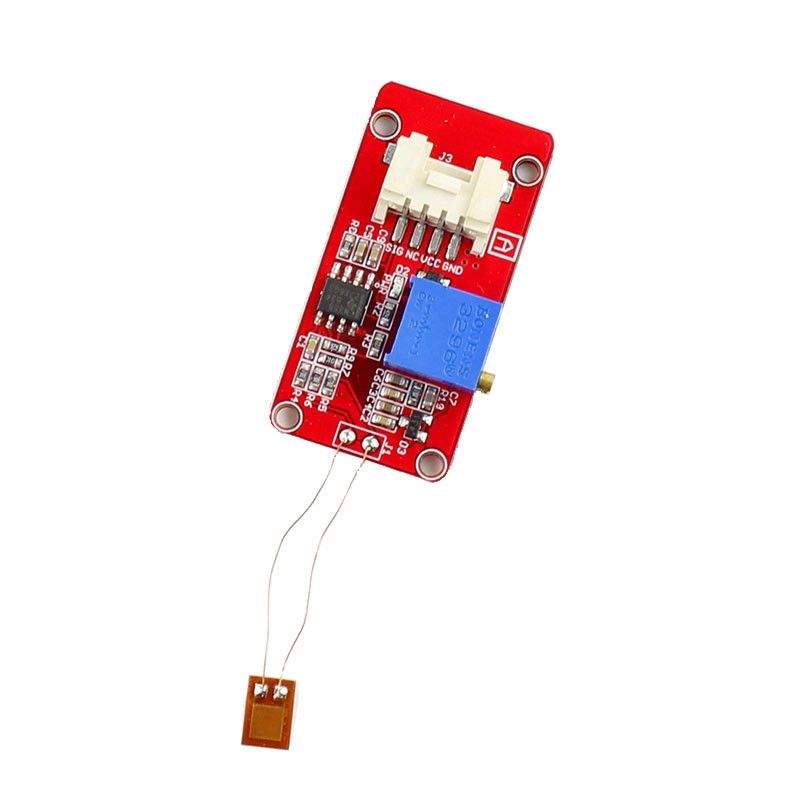

A strain gauge is a device used to measure strain on an object. This strain gauge module uses the strain gauge BF350-3AA to detect the strain, with the amplifier and potentiometer on the board to adjust the measured results, users can easily get the result with any microcontroller such as Arduino. This module can be positively used in measuring deformation (for example, across a bridge by loading positions and effects) in engineering and in physical distortions proportional to loading or thermal environments. In everyday, this module can be used to applications such as gating a traffic light into a new sequence when a car on a lightly traveled side-street enters a Tee-intersection. For better using on our crowduino, we add a crowtail port so that you can plug and use directly.

Features

• Working Voltage: 5VDC
• Analog Output: 0~3.5VDC
• Potentiometer to adjust the zero point
• Dimension: 32mm X 17mm

Parts list

• Crowtail- Strain Gauge Sensor x1

Links

• BF350-3AA Datasheet
• Program
