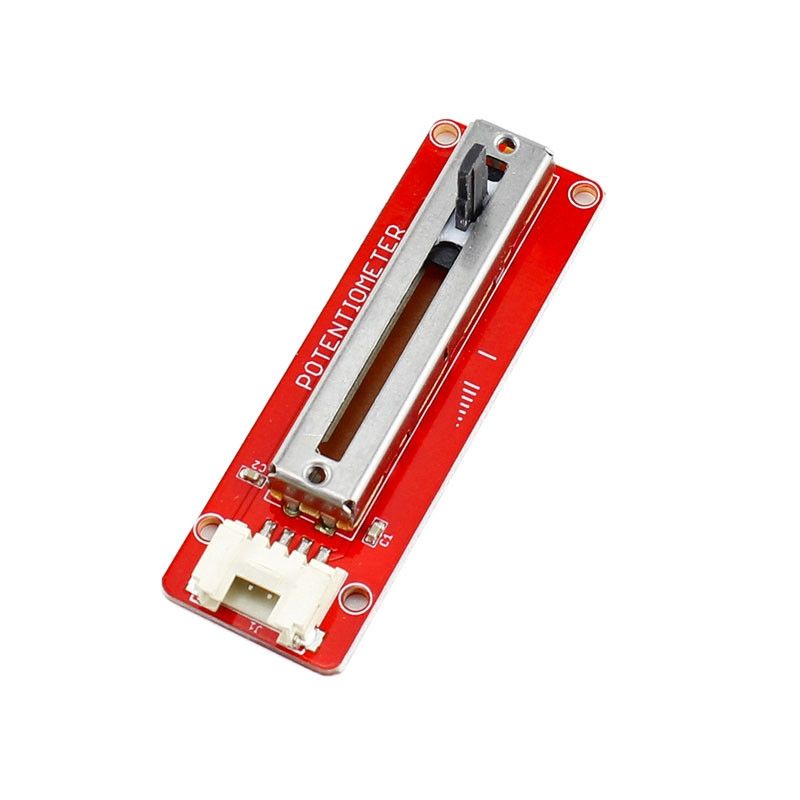

The Crowtail- Linear Potentiometer module uses a linear variable resistor with a maximum resistance of 10KΩ. When you move the slider from one side to the other, its output voltage will range from 0 V to the Vcc you applied. The panel mount design makes this module easy to be installed in projects.

Features

• Connection Mode:A(Analog)
• 30mm long slide length
• Linear resistance taper
• Dimensions(mm):60.0(L)x20.0(W)x18.0(H)

Helpful Links

• Linear_Potentiometer Schematic
• Linear_Potentiometer Program
• Wiki link
