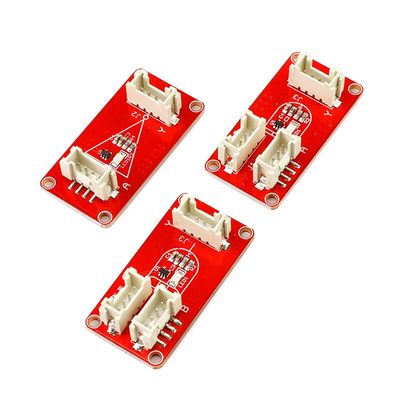

The Crowtail- Logic Block allows you to play with logic gates by literally plugging one into another and watching the progression of an input to an output!

Each Logic Block represents a different logic function: the NOT block is a simple inverter, where the output is the opposite of the input. The AND block will only output a 1 if both of the inputs are 1. The OR block will output a 1 if either of the inputs are 1. There are also input blocks and splitter blocks.

Features

• Output indicator.
• Dual output port.
• Dimensions(mm):40.0(L)x20.0(W)x9.8(H)

Specifications

• Logic block:"AND" "OR" "NOT"

Contents

• Crowtail-Logic Block x 1

Links

• User manual (wiki link)
