This is an intelligent non-contact sensor switch. It provides an adjustable detection distance from 0 to 200cm, which can be adjusted freely. The sensor is based on the principle of diffuse reflection of IR light on objects. When a person or object enters the sensing range in front of the sensor, the sensor immediately determines that there is induction, so as to control the output signal; after the person or object leaves the sensing range, it will judge that there is no induction, and stop signal output, by which intelligent control can be achieved.

[img-28396-left-desc_default]

[img-28397-left-desc_default]

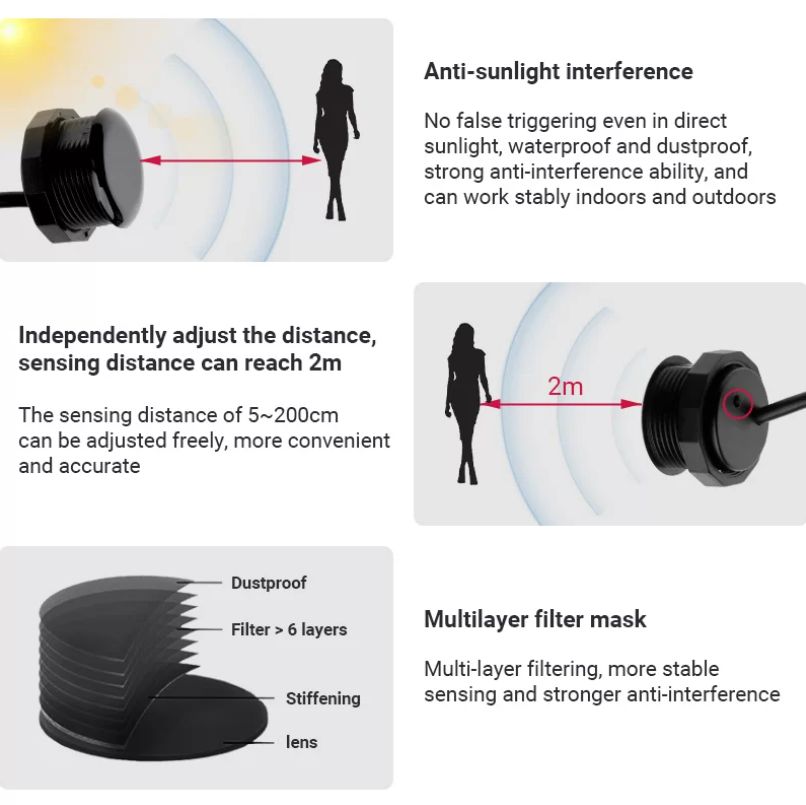

Feature

• Strong anti-interference ability: direct sunlight will not cause false triggers, waterproof and dustproof, and can work stably indoors and outdoors
• The distance can be adjusted independently: the sensing distance of 5~200cm can be adjusted independently, which is convenient and accurate
• Multi-layer filter cover: multi-layer filter, more stable induction
• Wide range of applications: can be used in smart trash cans, automatic faucets, security alarms and other scenarios

Specification

• Quiescent Current: ＜5mA
• Input voltage: DC 5V~24V
• Output method: NPN, Relay NO/NC, High and low level signal
• Load current: ＜3A (relay2A)
• Induction angle: 30-40°Cone angle
• Operating temperature：-20℃~85℃
• Sensing distance: Indoor 5cm~200cm, outdoor 5cm~150cm, direct sunlight 5-100cm
• Sensing accuracy: Indoor ±5cm, outdoor ±10cm, direct sunlight ±30cm
• Response time: ≤500MS
• Induction method: Diffuse reflection
• Storage temperature: -20℃~85℃
• Material: PC V0 fireproof material
• Waterproof: IP67
• Line length: 30cm

Package List

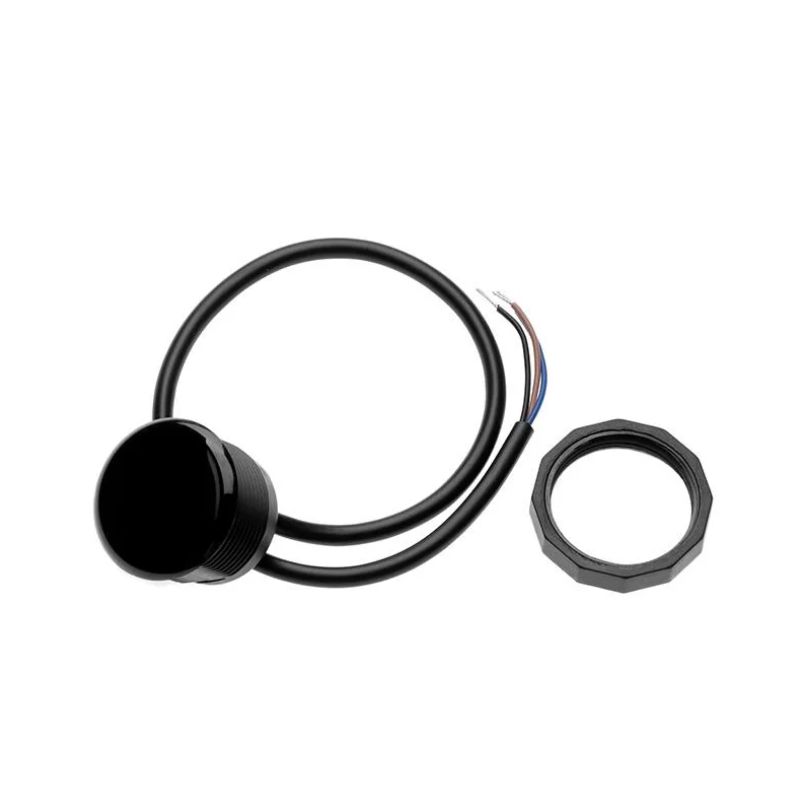

• 1xActive Infrared Sensor
