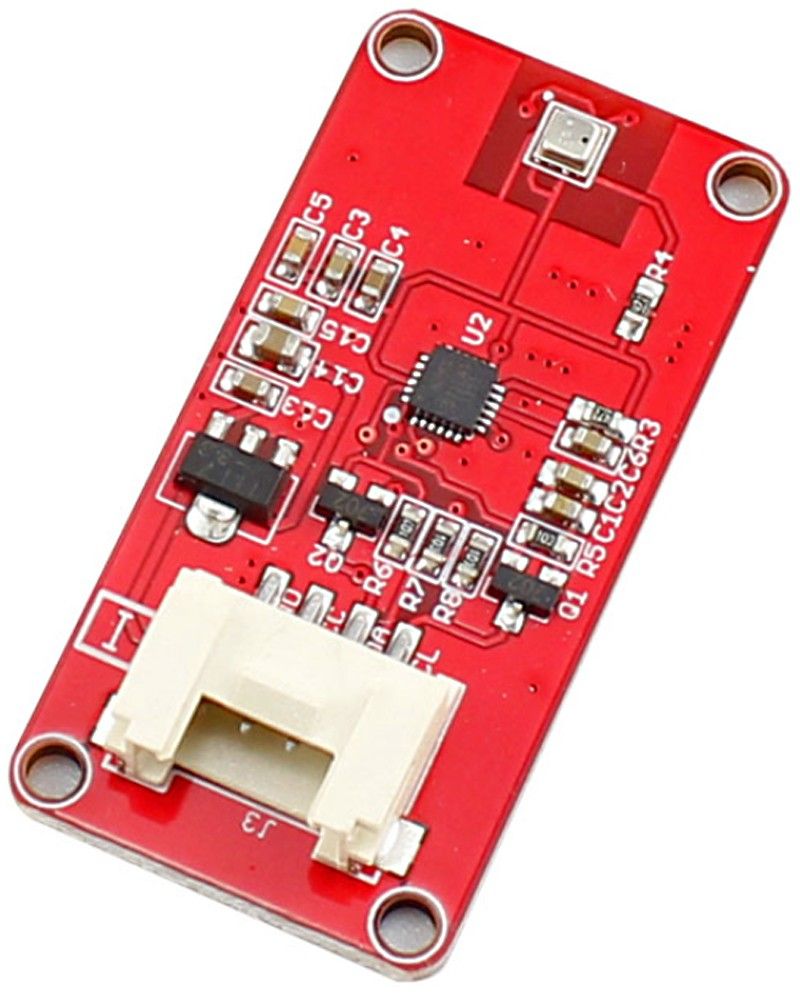

This is a 10 DOF IMU sensor which is built on MPU-9250 and BMP280, MPU-9250 is a 9-aixs motion tracking device that combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) in a 3*3*1mm package, finally add a barometer- BMP280, so it becomes a 10DOF IMU, it’s smaller in sizes with less power consumption, so use it with mobile phone or aircraft, smart wear devices will be more suitable.

Features

• Crowtail interface
• 10 Degrees of Freedom
• 3-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSB and a full-scale range of ±250, ±500, ±1000, and ±2000°/sec
• 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
• 3-axis compass with a full scale range of ±4800 uT
• Wide pressure detecting range of 300~1100hPa(+9000m ~ -500m relating to sea level)
• Temperaure measurement with ±1.0°C accuracy
• User-programmable full-scale range (digital output)
• Barometric pressure measurement range 300 - 1100 hPa with ±1.0 hPa accuracy

Specifications

• Input Voltage: 5V/3.3V
• Working Current: 6mA
• Working Temperature：-40 – 85℃
• Size: 20*40mm
• Weight: 3g
• Programmable interrupt

Delivery contents

• Crowtail- IMU 10DOF x1
• Crowtail cable x 1
