Elecrow CRT01140G - Crowtail GPS/BDS/GNSS Modules with GP02 - positioning accuracy is approximately 2 metriä and it can provide up to 5 Hz, <0,1 m/s accurate real-time positioning speed.

14,75 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

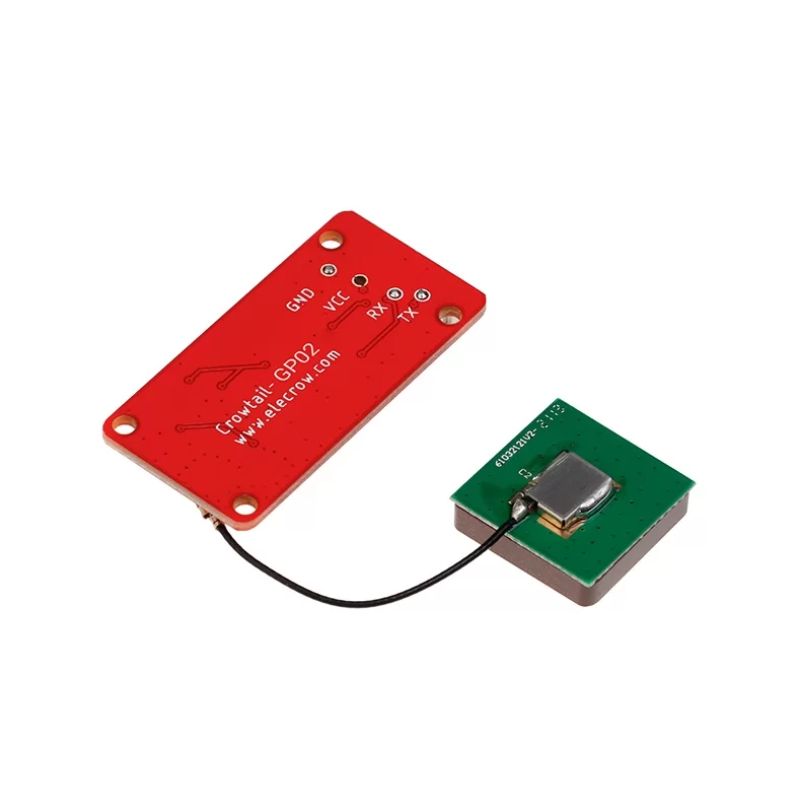

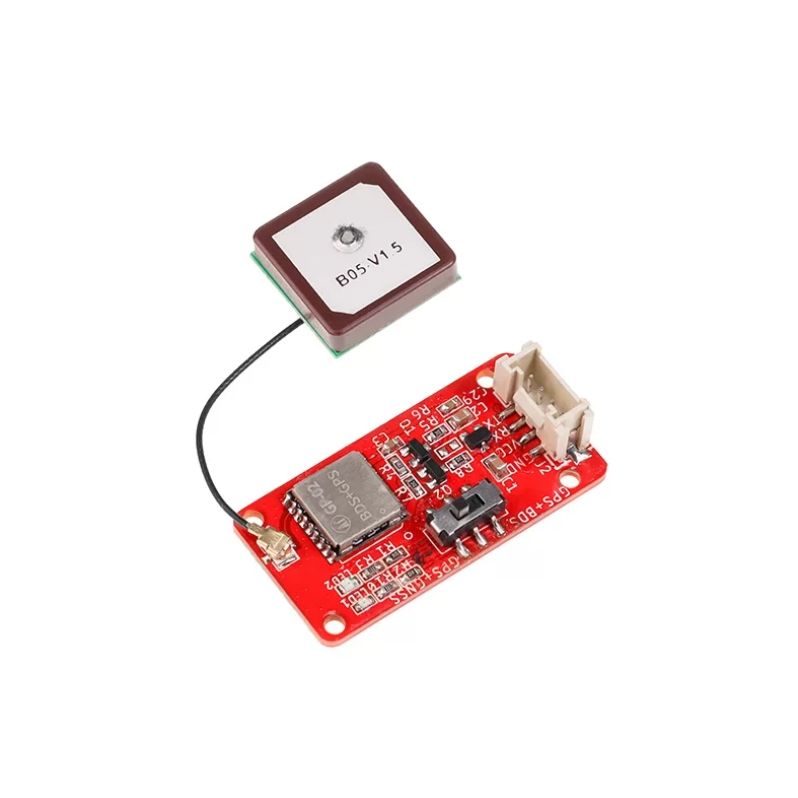

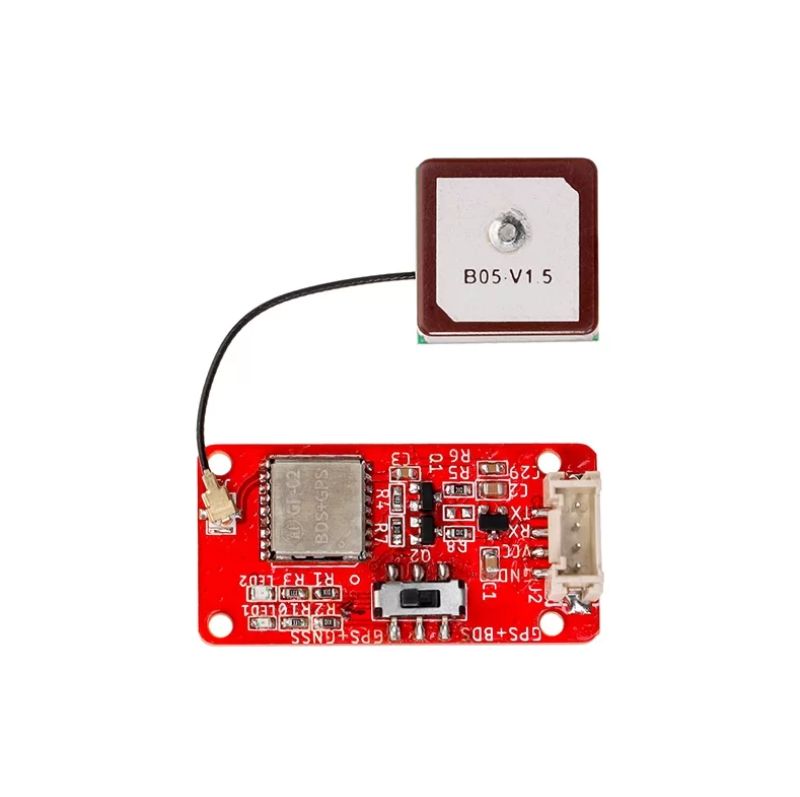

The Crowtail - GP02 module is a cost-effective, field-programmable device. The high-performance BDS/GPS/GLONASS multi-constellation satellite navigation receiver SoC module integrates the RF front-end, digital baseband processor, 32-bit RISC CPU, power management, and active antenna detection and protection functions. Its positioning accuracy is approximately 2 meters and it can provide up to 5 Hz, <0.1 m/s accurate and real-time positioning speed. The module supports multiple satellite navigation systems, including China’s Beidou Navigation Satellite System (BDS), the United States GPS, and Russia’s GLONASS, and it can perform multi-system combined positioning.

Features

Field-programmable
Outdoor positioning
32-bit RISC MCU
Supports BDS, GPS, and GLONASS systems
Low power consumption
High sensitivity and accuracy
Can switch between GPS+BDS and GPS+GNSS modes

Specifications

Operating voltage: DC 2.7 V ~ 3.6 V
Default baud rate: 9600
Interface type: UART
Navigation sensitivity: -160 dBm
Cold start capture sensitivity: -148 dBm
Tracking sensitivity: -162 dBm
Positioning accuracy: <2m (1σ)
BDS/GPS dual-mode continuous operating current: 23 mA
Dimensions (mm): 40.0 (L) x 20.0 (W) x 9.7 (H)
Time to first fix: Cold start: 32 s; Warm start: <1 s; Hot start: <1 s

Package Contents

1x Crowtail GP02
1x Crowtail Cable

Video

Product Information

Availability In stock
Manufacturer Elecrow
Product path Home Development Cards Modules Crowtail Skip to the end of the images gallery Skip to the beginning of the images gallery Crowtail GPS/BDS/GNSS Modules with GP02
SKU ECT-CRT01140G
Attributes
- Manufacturer's model CRT01140G
- Click for more details https://www.elecrow.com/wiki/index.php?title=Crowtail-GP02
