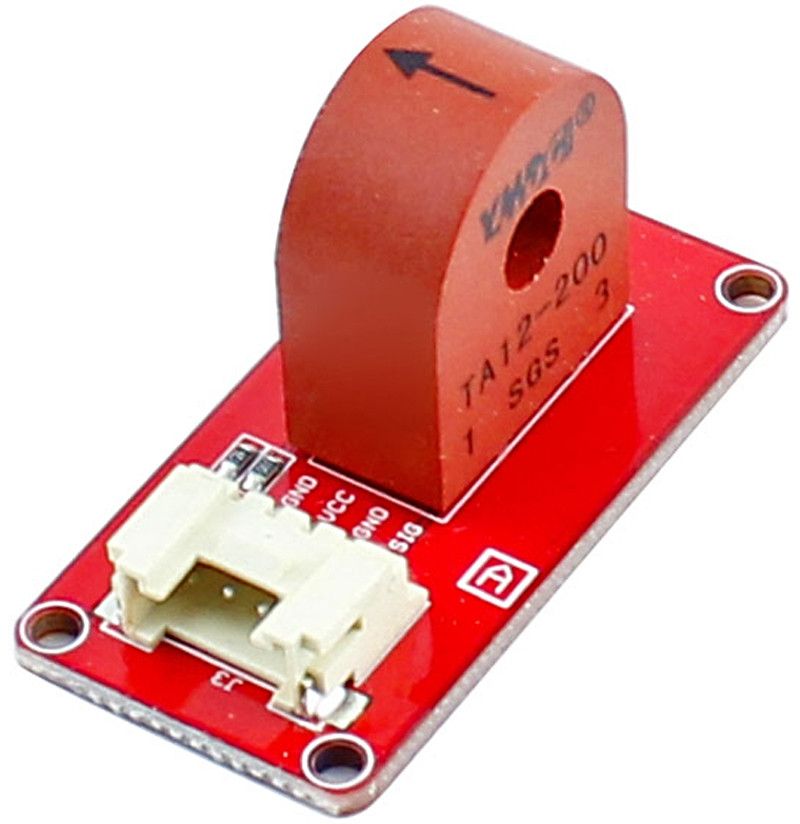

The Electricity sensor module is a member of Crowtail. It is based on the TA12-200 current transformer which can transform the large AC into small amplitude. You can use it to test large alternating current up to 5A.

Features

• Crowtail compatible interface
• Maximum 5A input
• High accuracy
• Small size
• Dimensions(mm): 40.0(L)x20.0(W)x21.7(H)

Specifications

• Ratio: 2000: 1
• Input Current: 0-5A AC
• Output Current: 0-2.5mA
• Sampling resistor: 800Ω
• Sampling voltage: 2V
• Non-linearity: ≤0.2%
• Phase Shift: ≤5

Package list

• Crowtail- Electricity Sensor x 1
• Crowtail cable x 1

Wiki & External links

• Elecrow Wiki link
