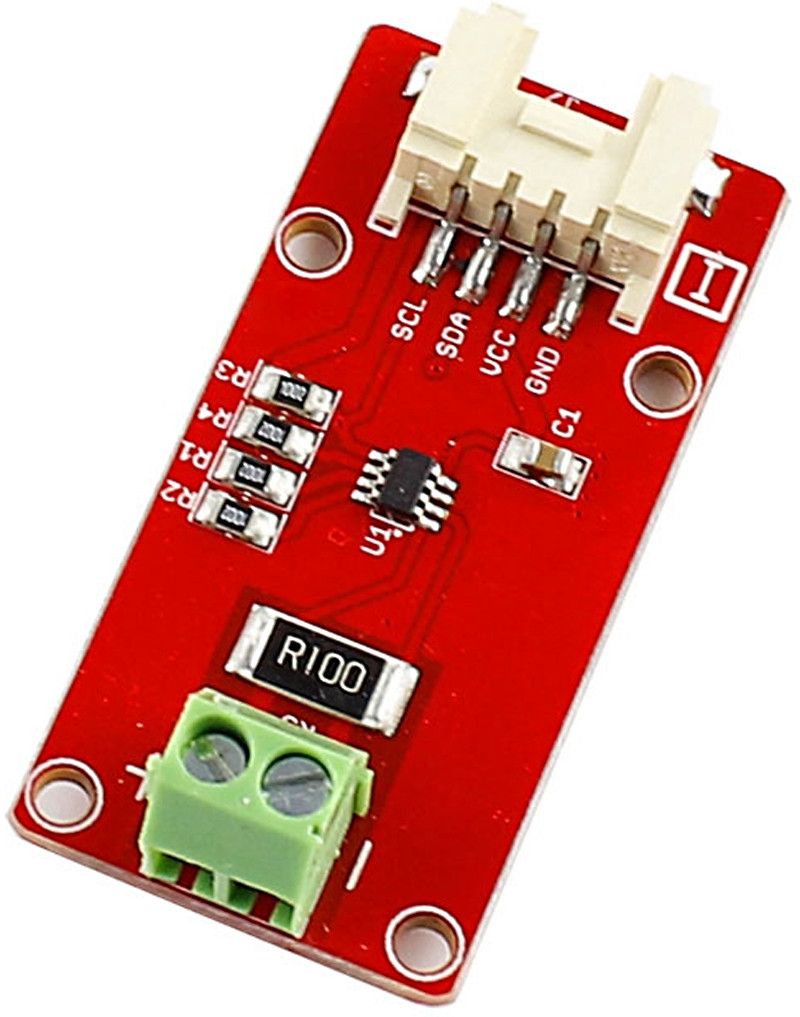

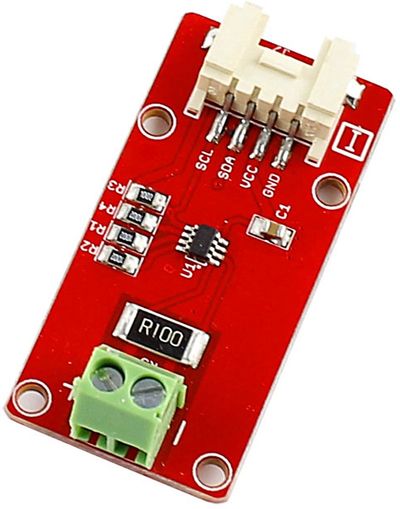

The Crowtail- Current Power Sensor will solve all your power-monitoring problems. Instead of struggling with two multimeters, you can use this breakout to measure both the high side voltage and DC current draw over I2C with 1% precision. It is use the INA219B chip that much smarter - it can handle high side current measuring, up to +26VDC, even though it is powered with 3 or 5V. It will also report back that high side voltage, which is great for tracking battery life or solar panels.

Features

• Measuring up to +26VDC.
• Simultaneously measure current and voltage.
• Corwtail IIC interface.

Specs

• Chip:INA219BIDCNT
• IIC address: 0x40
• Size:20 x 40mm

Delivery

• Crowtail-Current power sensor x 1

Links

• Elecrow User manual (wiki link)
