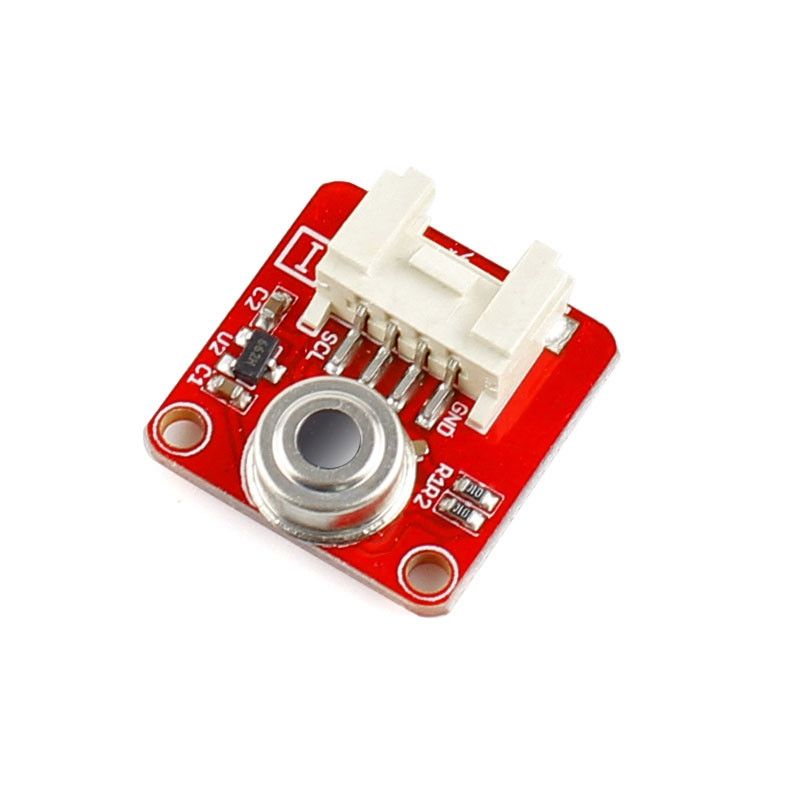

This Infrared temperature sensor is a non-contact temperature measure model by using the MLX90614, which one is in small size and low cost with measurement resolution of 0.02℃. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved. We also redesign the interface of it so that can work with our Crowtail base board.

Specifications

• Work Voltage: 3.3V ~ 5V
• Temperature measure range: -40~125°C
• Measure accuracy: ±0.5°C
• Compatible digital interface
• Dimensions(mm):20.0(L)x20.0(W)x6.8(H)

Application ideas

• Motion sensor
• Thief-guarding System
• Switch
• Body distance check
• Industrial automation
• movement detection

Package list

• Infrared temperature sensor x 1
• Crowtail Cable x 1

Wiki & External links

• Wiki link
