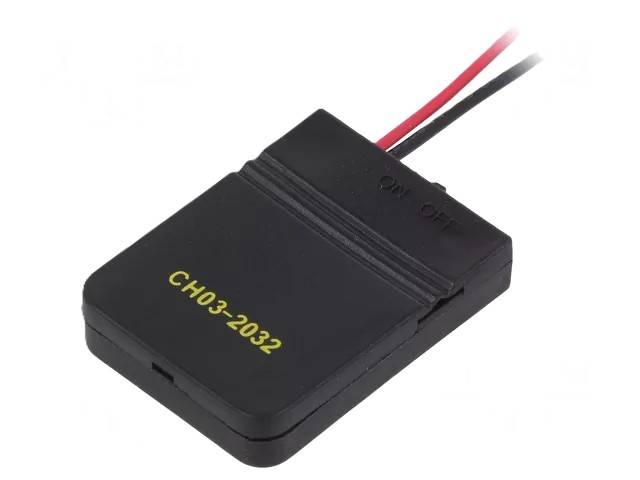

CH03-2032AS – CR2032 battery holder with wires and power switch

The CH03-2032AS is a battery holder for CR2032, BR2032 and DL2032 coin cells, featuring preinstalled wires and an integrated slide switch for turning power on and off. It is ideal for prototypes, IoT devices, sensors, small electronics projects and battery-powered controls.

Features

• Compatible with CR2032, BR2032 and DL2032 batteries
• For a single 20 mm / 3,2 mm coin cell
• Integrated ON/OFF slide switch
• Prewired red/black leads
• Wire length 150 mm
• AWG26 UL1007 wires
• Black PP plastic housing
• Nickel-plated phosphor bronze contacts
• RoHS compliant

Technical specifications

• Product code: CH03-2032AS
• Battery type: CR2032 / BR2032 / DL2032
• Number of batteries: 1 kpl
• Switch: Built-in slide switch
• Wire length: 150 mm
• Wire type: AWG26, UL1007
• Strip and tin: 4 mm
• Housing material: PP plastic
• Color: Black
• Contacts: Nickel-plated phosphor bronze

Suitable for low-power battery-powered applications that require an easily installable CR2032 battery holder with preattached wires and a power switch.
