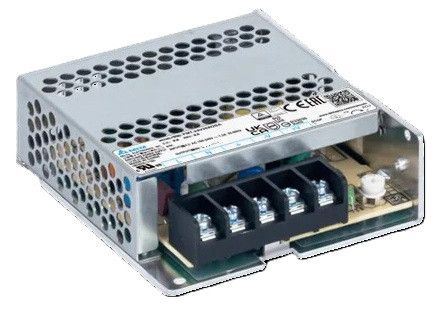

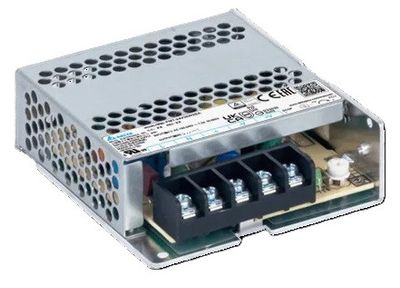

Delta PMT-24V50W2BA panel-mount power supply with a fine-adjustable 24 VDC 2.2 A output

Technical specifications

• Input voltage range: 90–264 VAC (rated voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.95 A typ. @ 115 VAC, 0.6 A typ. @ 230 VAC
• Efficiency: 88 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.3 W @ 230 VAC
• Inrush current (cold start): 45 A typ. @ 230 VAC
• Leakage current: < 0.5 mA @ 240 VAC
• Nominal output voltage: 24 VDC
• Factory setting and tolerance: 24 VDC ±1 %
• Output voltage adjustment range: 21.6-26.4 VDC
• Output current: 2.2 A
• Maximum output power: 52.8 W
• Line regulation: ±0.5 %
• Load regulation: ±0.5 %
• Operating temperature range -30°C - +70°C
