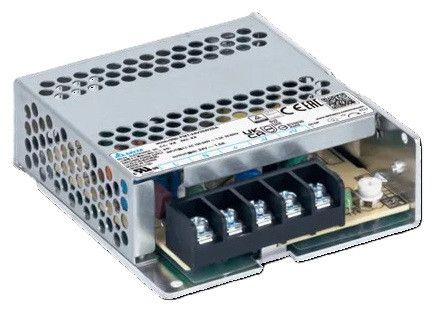

Delta PMT-24V35W2BA panel-mounted power supply with a finely adjustable 24VDC 1.5A output

Technical specifications

• Input voltage range: 90–264 VAC (nominal 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.7 A typ. @ 115 VAC, 0.42 A typ. @ 230 VAC
• Efficiency: 88.5% typ. @ 100% load, 230 VAC
• No-load power consumption: < 0.3 W @ 230 VAC
• Inrush current (cold start): 45 A typ. @ 230 VAC
• Leakage current: < 0.5 mA @ 240 VAC
• Nominal output voltage: 24 VDC
• Factory setting and tolerance: 24 VDC ±1%
• Output voltage adjustment range: 21.6–26.4 VDC
• Output current: 1.5 A
• Maximum output power: 36 W
• Line regulation: ±0.5%
• Load regulation: ±0.5%
• Operating temperature range: -30°C to +70°C
