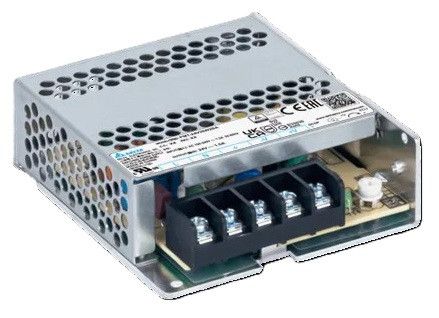

Delta PMT-12V35W2BA panel-mount power supply with fine-adjustable 12VDC 3A output

Technical specifications

• Input voltage range: 90–264 VAC (rated voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 0.7 A typ. @ 115 VAC, 0.42 A typ. @ 230 VAC
• Efficiency: 86 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0.3 W @ 230 VAC
• Inrush current (cold start): 45 A typ. @ 230 VAC
• Leakage current: < 0.5 mA @ 240 VAC
• Rated output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±1 %
• Output voltage adjustment range: 10.8–13.2 VDC
• Output current: 3 A
• Maximum output power: 36 W
• Line regulation: ±0.5 %
• Load regulation: ±0.5 %
• Operating temperature range: -30°C - +70°C
