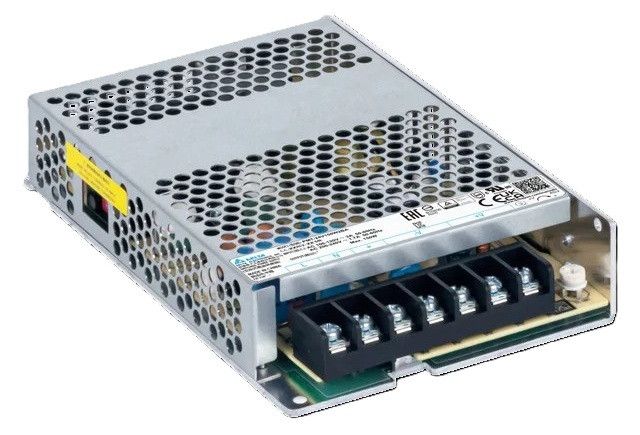

Delta PMT-12V150W2BA panel-mount power supply with an adjustable 12VDC 3A output

Technical specifications

• Selectable input voltage range by switch 90–132 VAC or 180-264 VAC
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 3 A typ. @ 115 VAC, 1,7 A typ. @ 230 VAC
• Efficiency: 87,5 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0,5 W @ 230 VAC
• Inrush current (cold start): 60 A typ. @ 230 VAC
• Leakage current: < 0,5 mA @ 240 VAC
• Rated output voltage: 12 VDC
• Factory setting and tolerance: 12 VDC ±1 %
• Output voltage adjustment range: 10,8–13,2 VDC
• Output current: 12,5 A
• Maximum output power: 150 W
• Line regulation (Verkkosäätö): ±0,5 %
• Load regulation (Kuormasäätö): ±0,5 %
• Operating temperature range -30°C - +70°C
