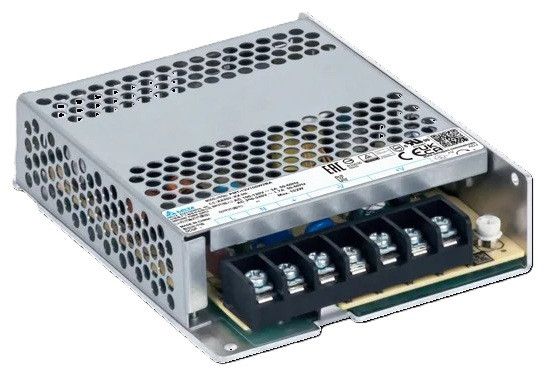

Delta PMT-24V100W2BA panel-mount power supply with finely adjustable 24VDC 4,5A output

Technical specifications

• Input voltage range: 90–264 VAC (nominal voltage 100–240 VAC)
• Input frequency: 50–60 Hz (range 47–63 Hz)
• Input current: 1,9 A typ. @ 115 VAC, 1,2 A typ. @ 230 VAC
• Efficiency: 90 % typ. @ 100 % load, 230 VAC
• No-load power consumption: < 0,3 W @ 230 VAC
• Inrush current (cold start): 55 A typ. @ 230 VAC
• Leakage current: < 0,5 mA @ 240 VAC
• Nominal output voltage: 24 VDC
• Factory setting and tolerance: 24 VDC ±1 %
• Output voltage adjustment range: 21,6-26,4 VDC
• Output current: 4,5 A
• Maximum output power: 108 W
• Line regulation: ±0,5 %
• Load regulation: ±0,5 %
• Operating temperature range -30°C - +70°C
