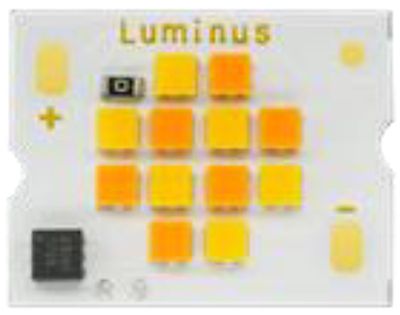

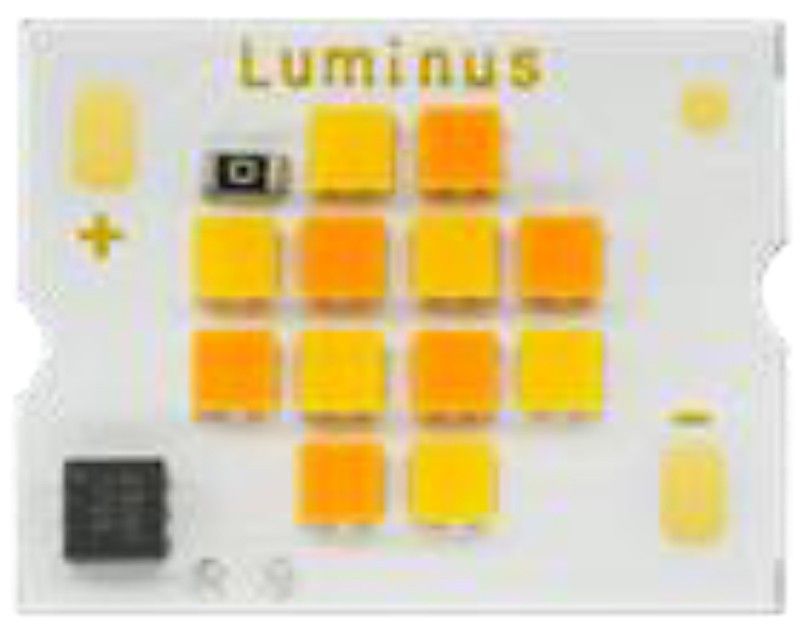

Luminus CDM-9-3018-90-36-DW02 - Warm Dimming LED Spot Module, White 3000K-1800K (DIM to WARM), 36V, 11W

6,60 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Linear dimming curve
DIM to WARM 3000K-1800K
Light-emitting surface (LES) diameter: 9,5 mm.
Correlated color temperature (CCT): 3000K - 1800K.
Color rendering index (CRI): >97
Typical forward voltage: 35.5V (max 38V).
Typical forward current: 300mA (max 400mA)
Typical power: 11W (max 14,5W)
Typical luminous flux: 870lm @ 300mA Tj=85C

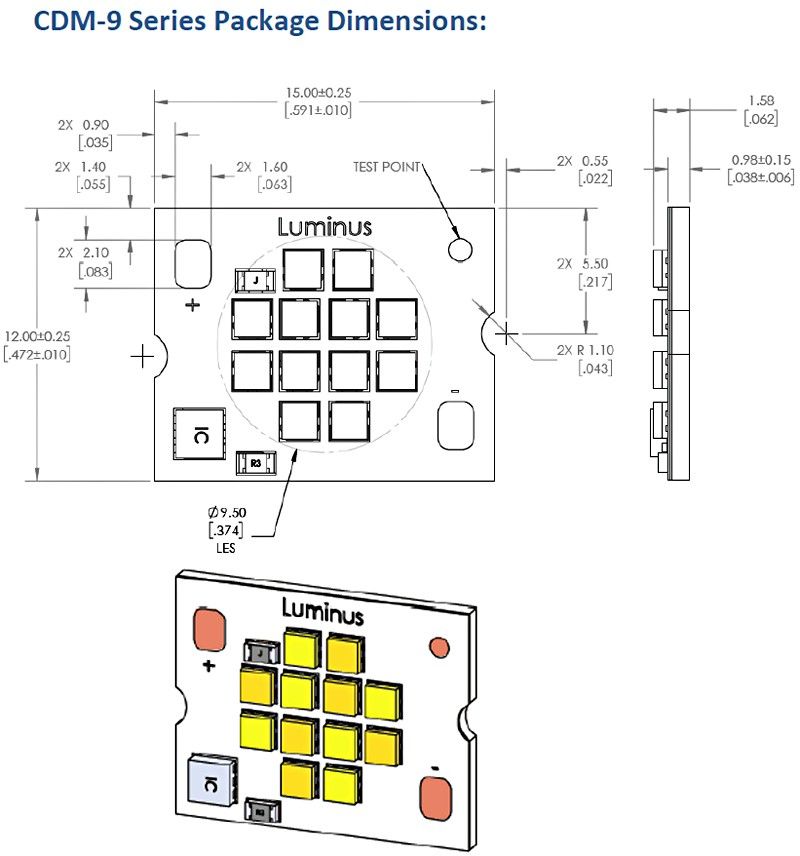

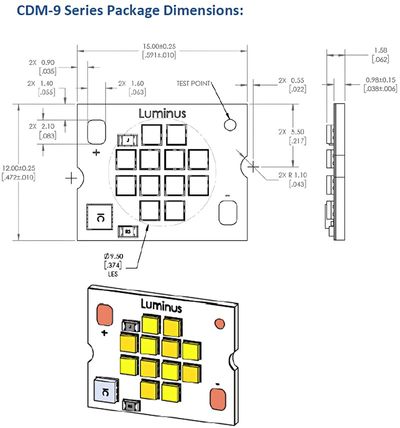

Size: 15.0 x 12.0 x 1.58 mm.

Compatible drivers

Cuvée KAW-12E35IAD/R

Cuvée KAW-10E28IAD/R

Cuvée KCB-10E28IAD/R

Cuvée KCB-12E35IAD/R

Product Information

Availability In stock
Manufacturer Luminus
Product path Home Elgood representations Luminus CDM-9-3018-90-36-DW02
SKU CDM930189036DW02
Attributes
- Voltage class 36V
- Power class 11W
- Manufacturer's model CDM-9-3018-90-36-DW02
- Click for more details https://www.luminus.com/products/dynamic-cob/warm-dimming
